Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front carpet retainer. Refer to Carpet Retainer Replacement - Front .
  2. Remove the rear carpet retainer. Refer to Carpet Retainer Replacement - Rear .
  3. Remove the door weatherstrip from the center pillar pinch weld flange to expose the lower trim panel.
  4. Starting at the base, grasp the trim panel firmly with both hands. Pull the panel away from the center pillar.

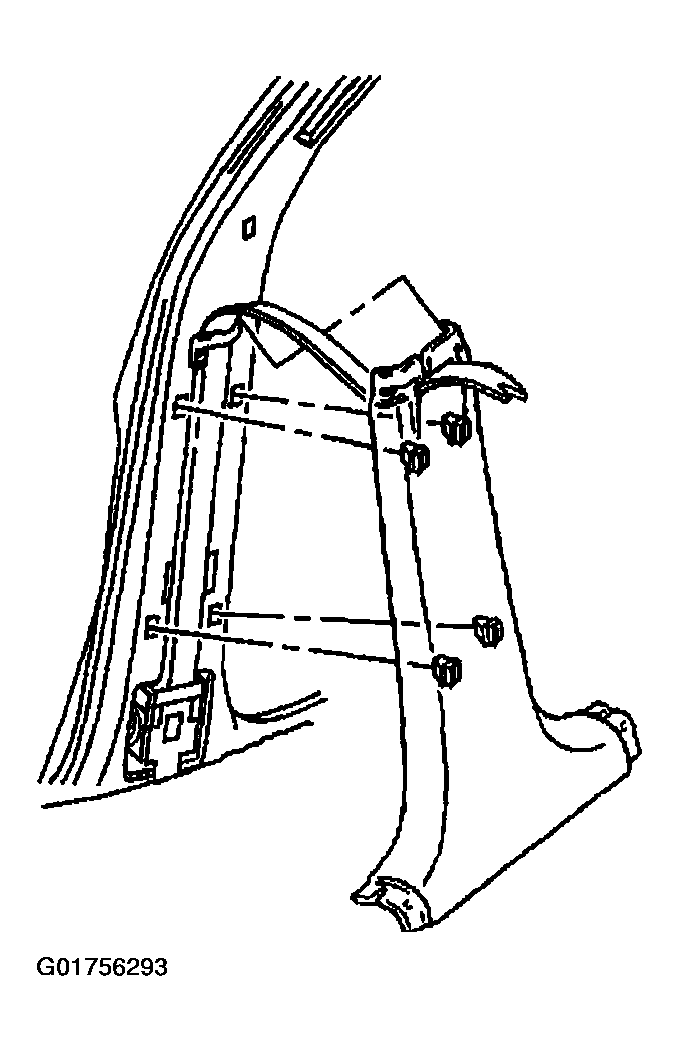

    5. Fig 1: Identifying Lower Center Pillar Trim Panel
    G01756293Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat belt from the slot in the lower trim panel.
