Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

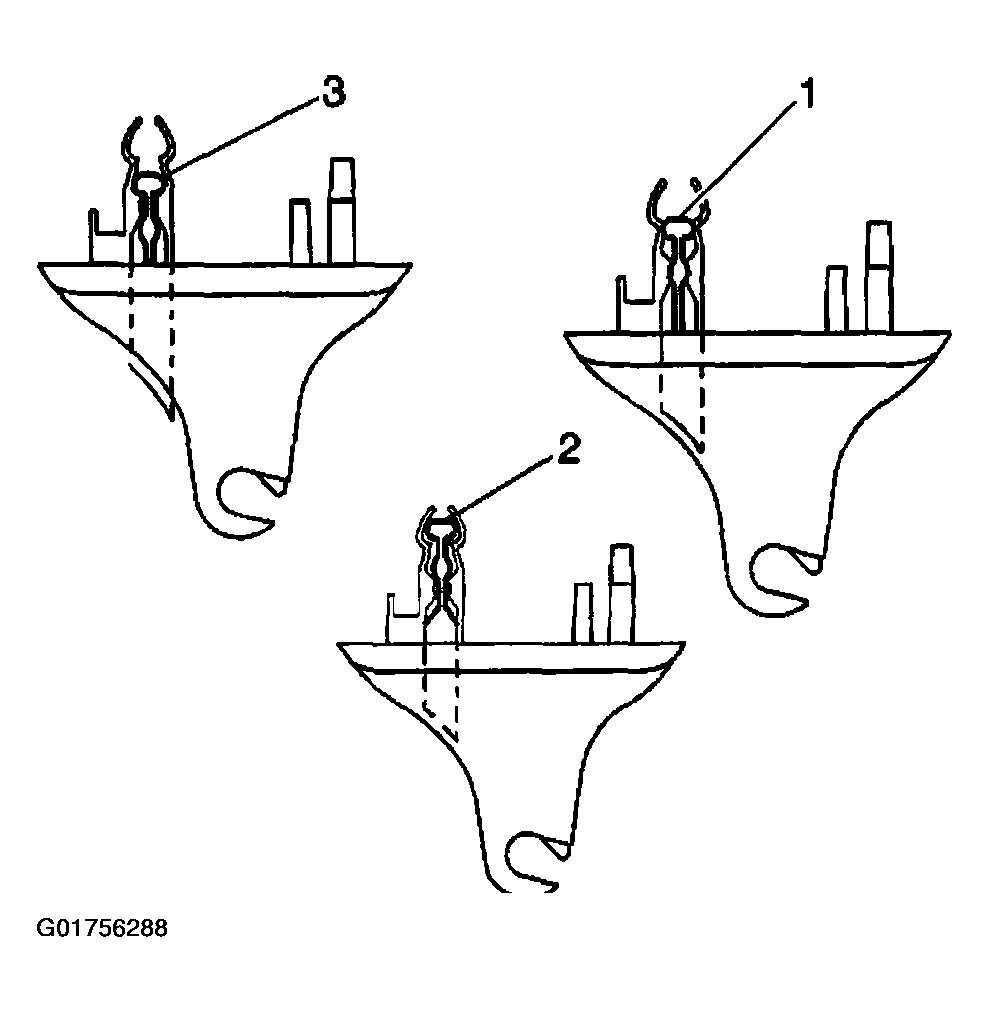

Set locking tab on bezel to pre-installation position:
- Locking tab installed position (1)
- Locking tab released position (2)
- Locking tab pre-installed position (3)

Fig 1: Installing Sunshade Anchor

Courtesy of GENERAL MOTORS CORP.

Push the retainer upward into the headliner.
Press upward on the service tab until the tab is flush with the retainer.
Return the sunshade to the original position.
