Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the rear compartment trim and install the push in retainers.
  2. Install the sound barrier.

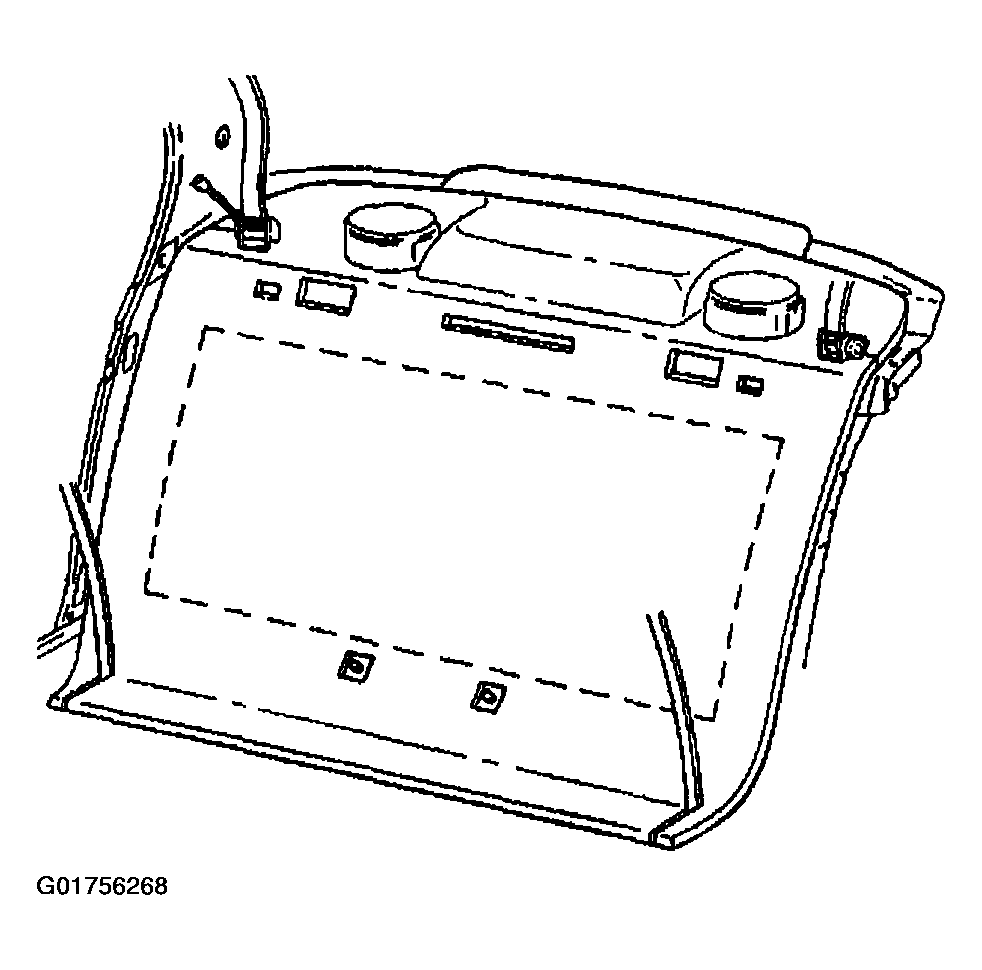

    3. Fig 1: Identifying Rear Seat Back Sound Barrier
    G01756268Courtesy of GENERAL MOTORS CORP.
  3. Install the rear window trim panel. Refer to Trim Panel Replacement - Rear Window Shelf .
  4. Install the upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper .
  5. Install the lower quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower .
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (NON-FOLDING) or SEAT BACK REPLACEMENT - REAR (FOLDING) .
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
