Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - FRONT BUCKET or SEAT REPLACEMENT - SPLIT BENCH .
  2. Remove the center console, if equipped. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) or CONSOLE REPLACEMENT - FRONT FLOOR (D55) .
  3. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  4. Remove the carpet retainers. Refer to Carpet Retainer Replacement - Front  and Carpet Retainer Replacement - Rear  .
  5. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  6. Remove the trim panel from the lower center pillar. Refer to Trim Panel Replacement - Lower Center Pillar .
  7. Remove the quarter lower trim. Refer to Trim Panel Replacement - Rear Quarter Lower .
  8. Remove the carpet from the vehicle.

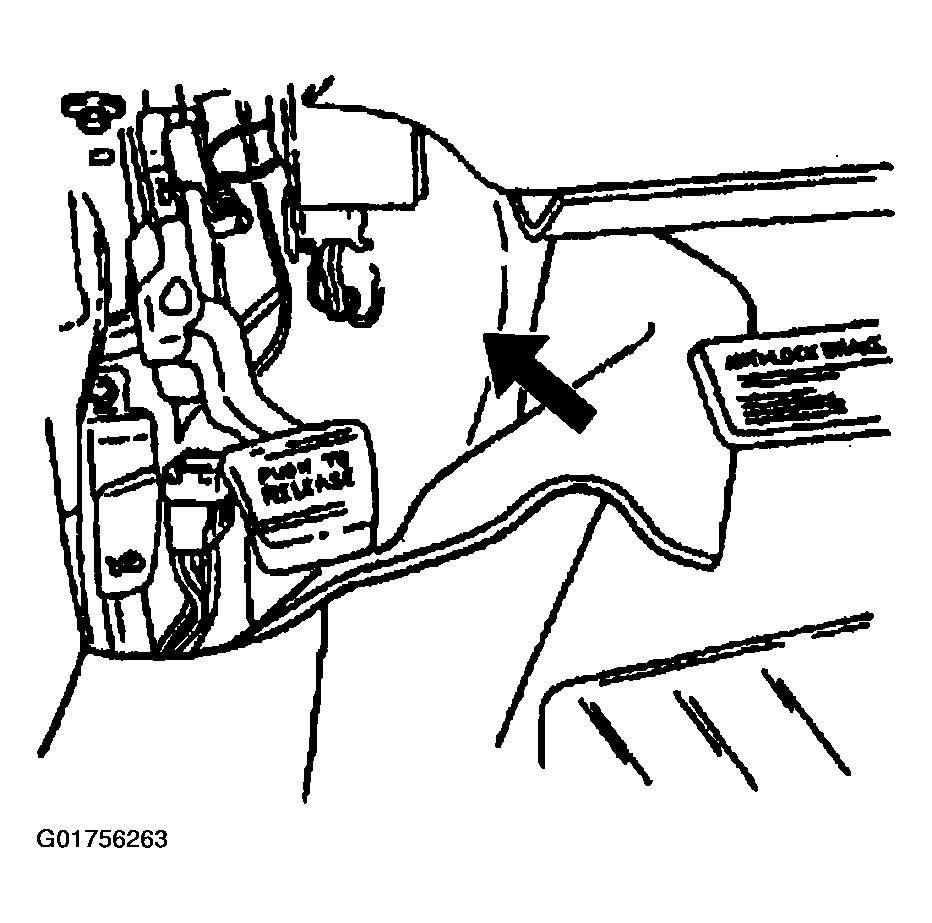

    Fig 1: Removing Front Carpet From Vehicle
    G01756263Courtesy of GENERAL MOTORS CORP.

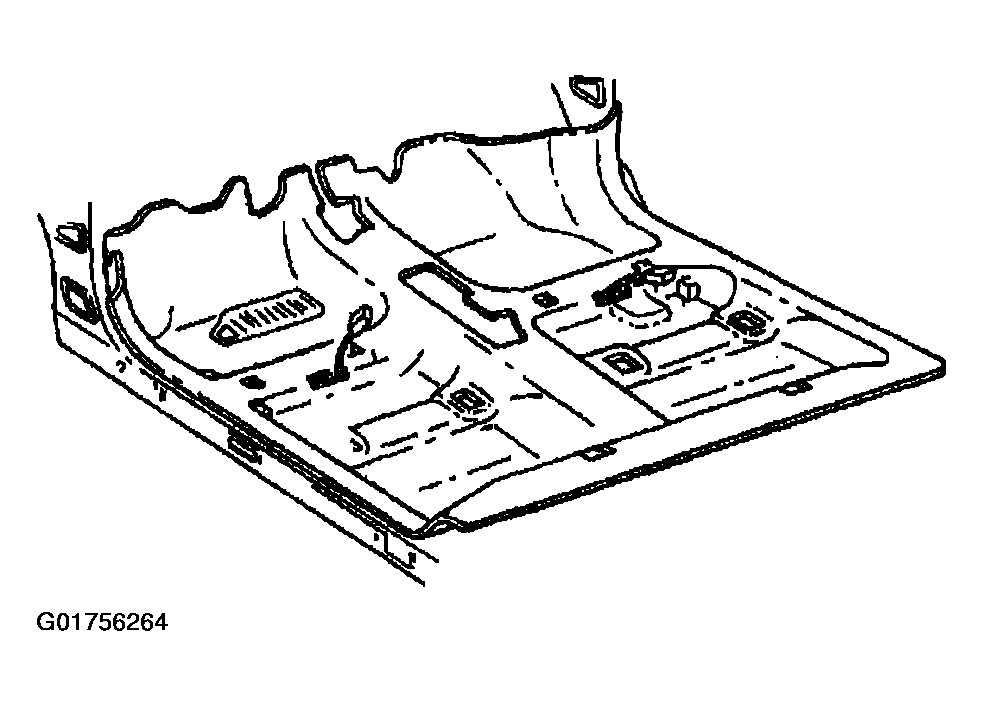

    Fig 2: Identifying Front Carpet
    G01756264Courtesy of GENERAL MOTORS CORP.
