Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear assist handle to the headliner.
  2. Connect the roof rail lamp connector.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the assist handle screws (2). Tighten the screws to 3 N.m (27 lb in).

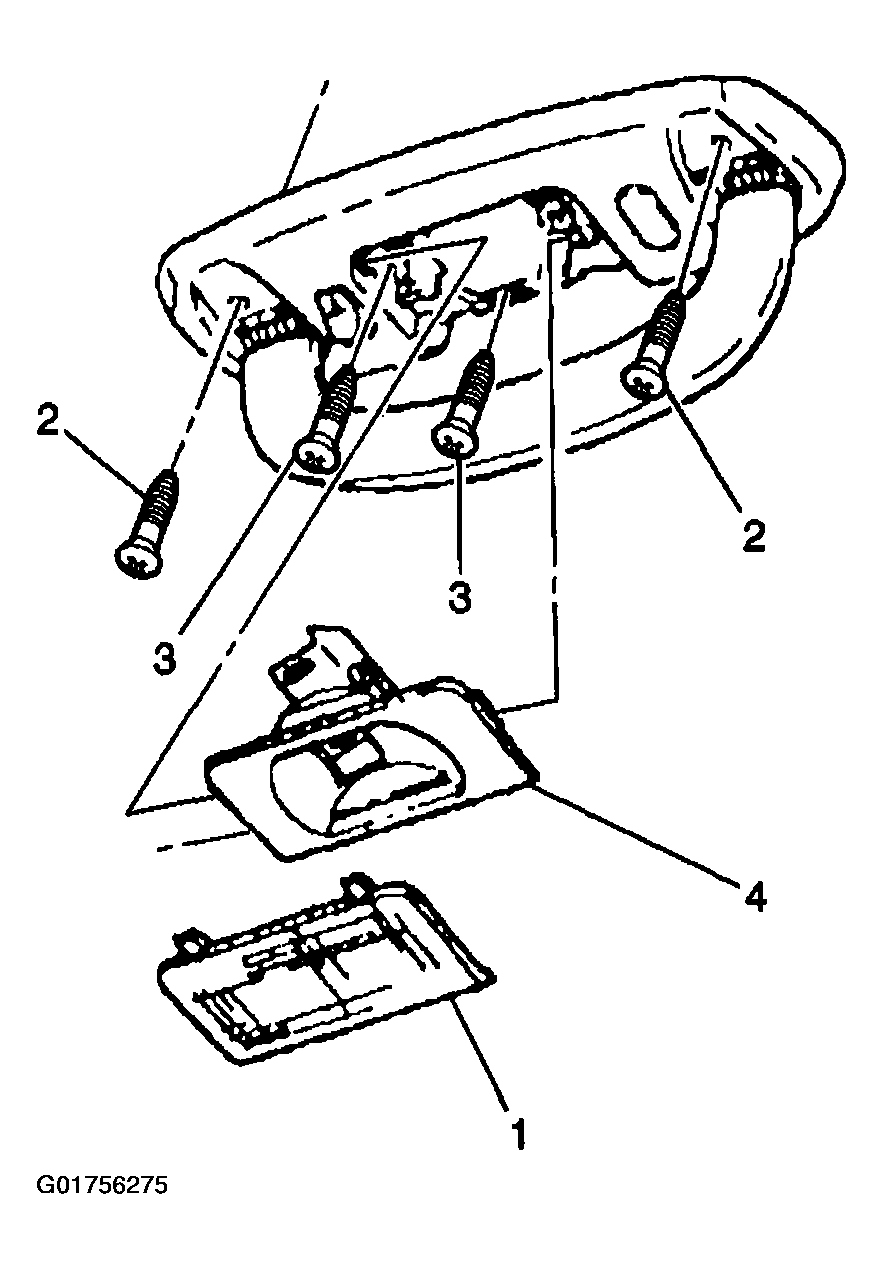

    Fig 1: Identifying Rear Assist Handle Components
    G01756275Courtesy of GENERAL MOTORS CORP.
