Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower .
  2. Remove the electrical connector (5) from the sliding side door lock (1).
  3. Remove the wiring harness retainers (2) from the sliding side door.
  4. Remove the rivets (4), that retain the electrical contacts to the sliding side door, using an appropriate drill and drill bit.
  5. Remove the wiring harness (3) from the sliding side door.

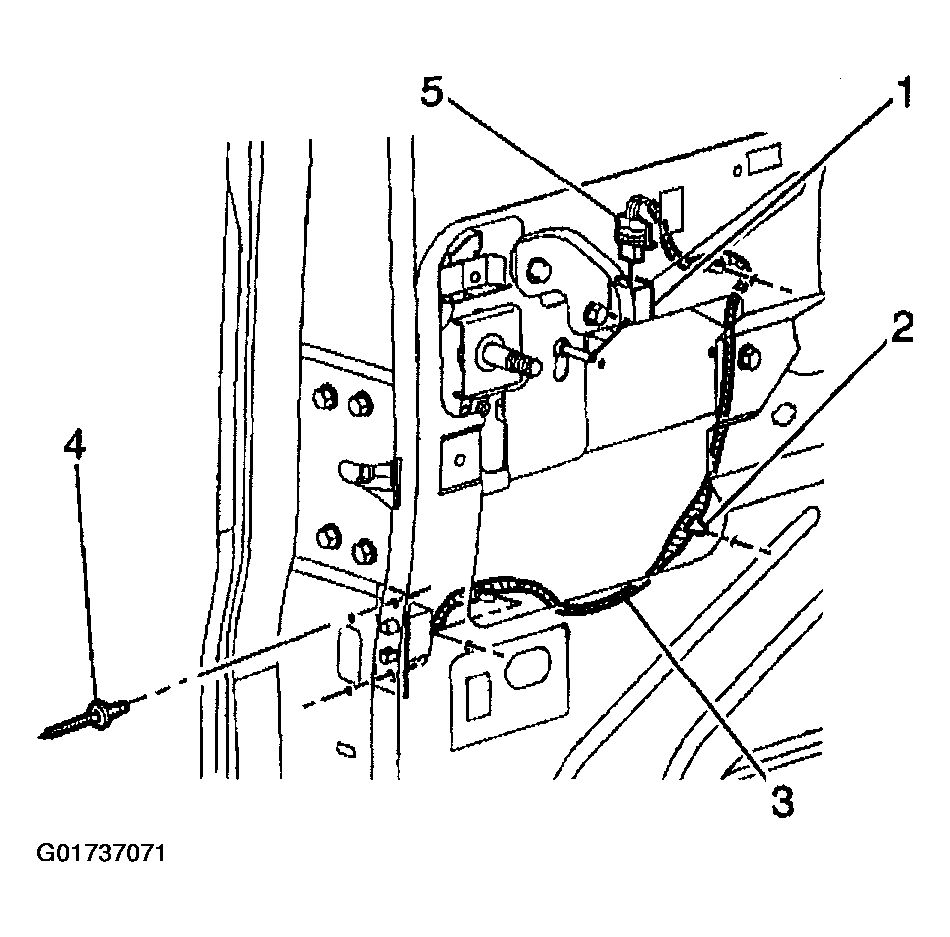

Fig 1: Removing Sliding Door Wiring Harness
G01737071Courtesy of GENERAL MOTORS CORP.
