Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connectors (1) from the door lock.
  3. Remove the wiring harness retainers (2) from the door lock.
  4. Remove the rivets (3), that retain the electrical contacts to the door, using an appropriate drill and drill bit.
  5. Remove the wiring harness from the side door.

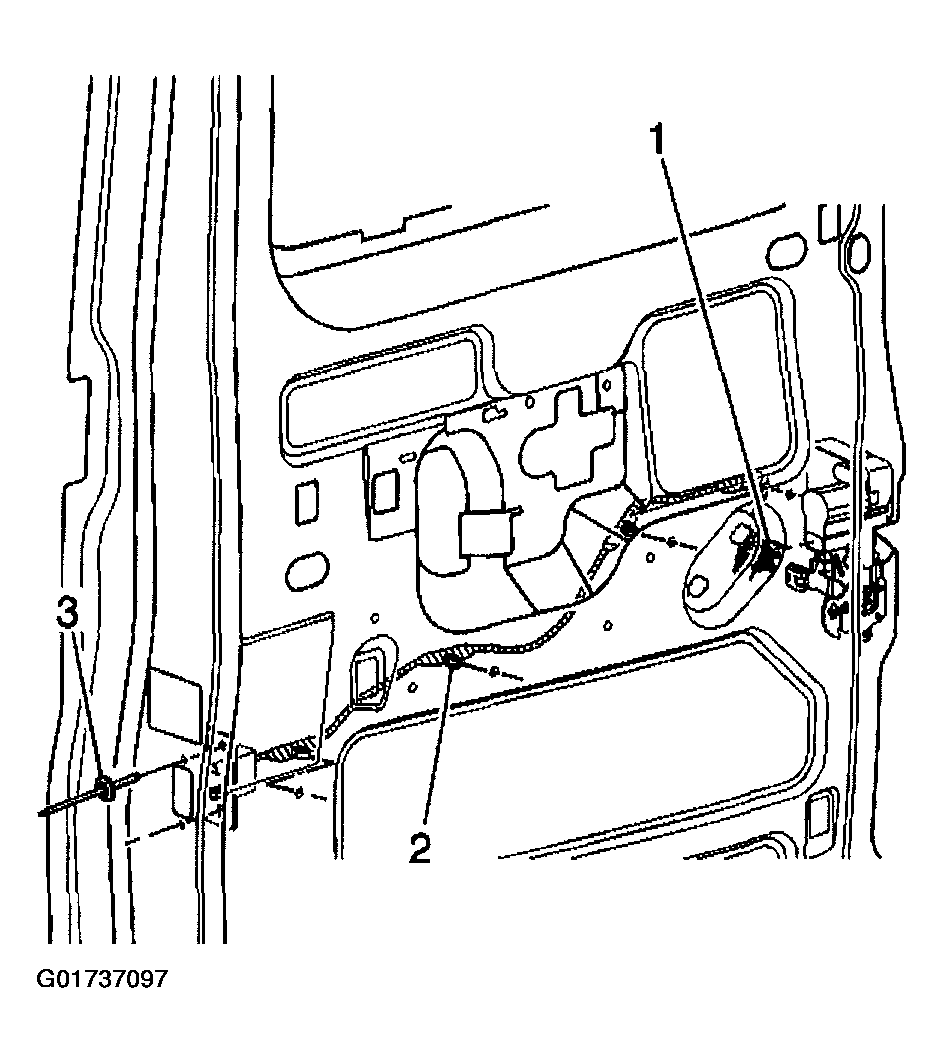

Fig 1: Removing Door Wiring Harness
G01737097Courtesy of GENERAL MOTORS CORP.
