Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door upper trim panel. Refer to Trim Panel Replacement - Sliding Door Upper .
  2. Remove the hinged body side window. Refer to HINGED REAR WINDOW REPLACEMENT .
  3. Pull the sliding side door window weatherstrip from the window opening pinch-weld flange.
  4. Remove the sliding side door window weatherstrip from the vehicle.

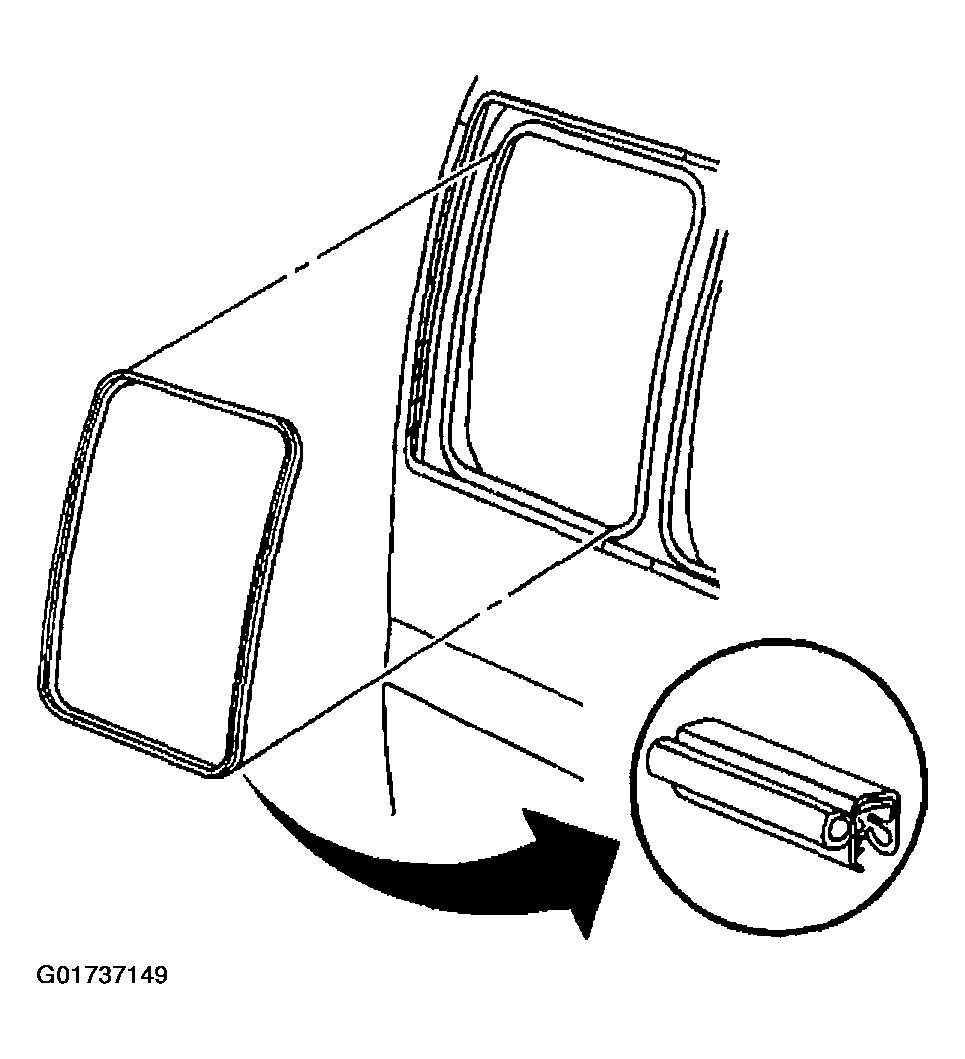

Fig 1: Removing Sliding Door Window Weatherstrip
G01737149Courtesy of GENERAL MOTORS CORP.
