Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door trim panel. Refer to Trim Panel Replacement - Door .
  2. Remove the hinged body side window. Refer to HINGED BODY SIDE WINDOW REPLACEMENT .
  3. Pull the side door window weatherstrip from the window opening pinch-weld flange.

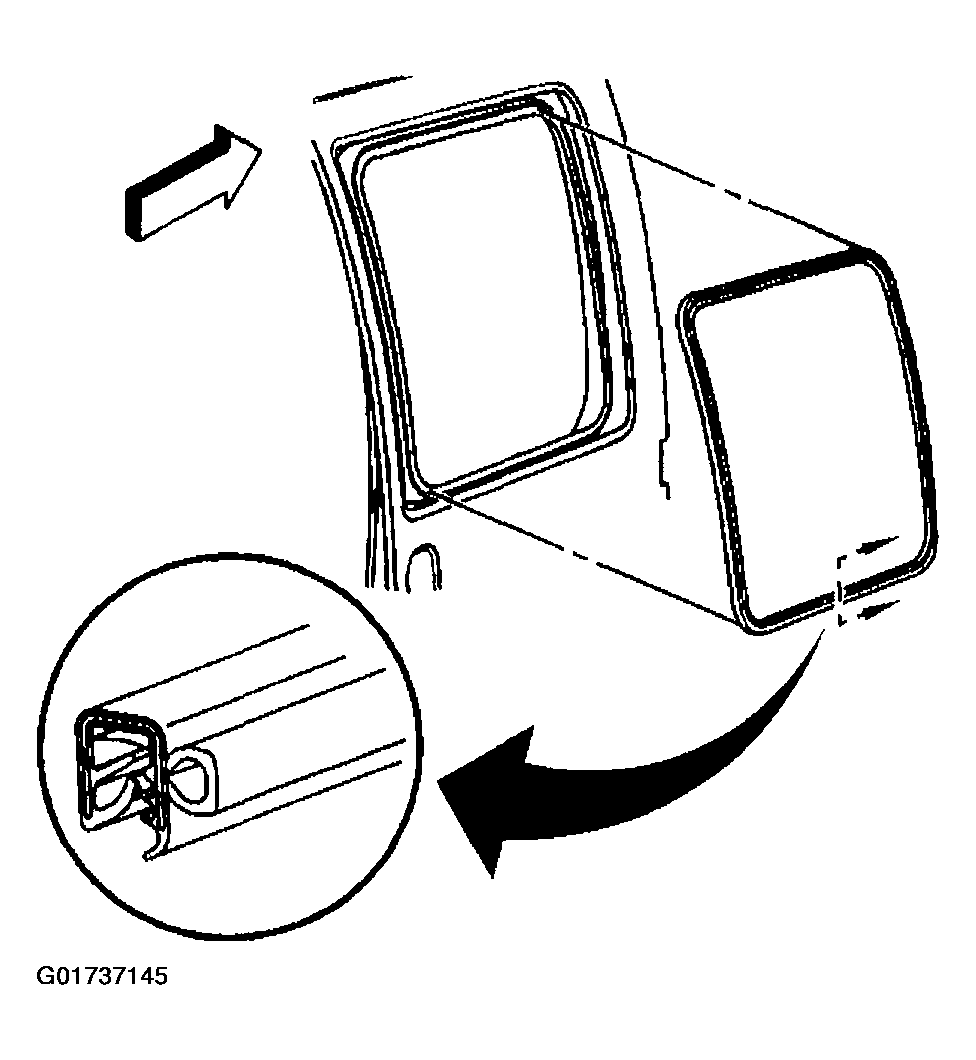

Fig 1: Removing Side Door Window Weatherstrip
G01737145Courtesy of GENERAL MOTORS CORP.
