Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hinge pillar upper garnish. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  2. Remove the hinge pillar lower garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  3. Remove the side door opening frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SIDE DOOR OPENING FRAME .
  4. Remove the passenger side front corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - RIGHT SIDE FRONT .
  5. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  6. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  7. Remove the retainers at the lower corners of the side door opening weatherstrip.

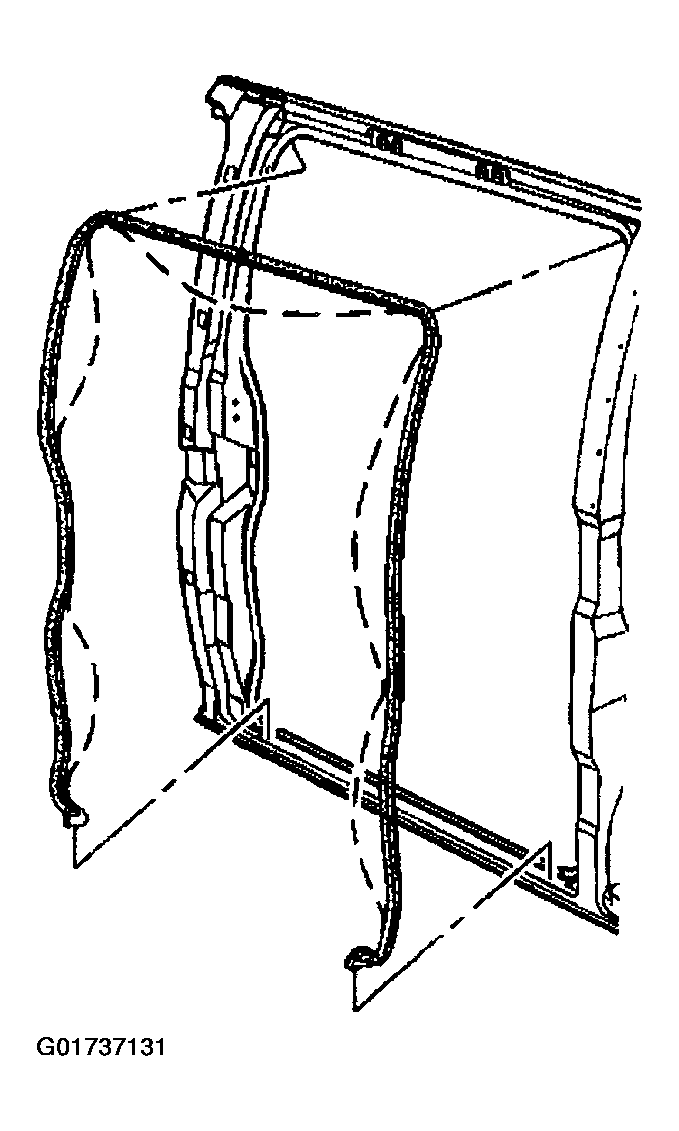

    8. Fig 1: Removing Side Door Opening Weatherstrip Retainers
    G01737131Courtesy of GENERAL MOTORS CORP.
  8. Pull the side door opening weatherstrip from the door opening pinch-weld flange.

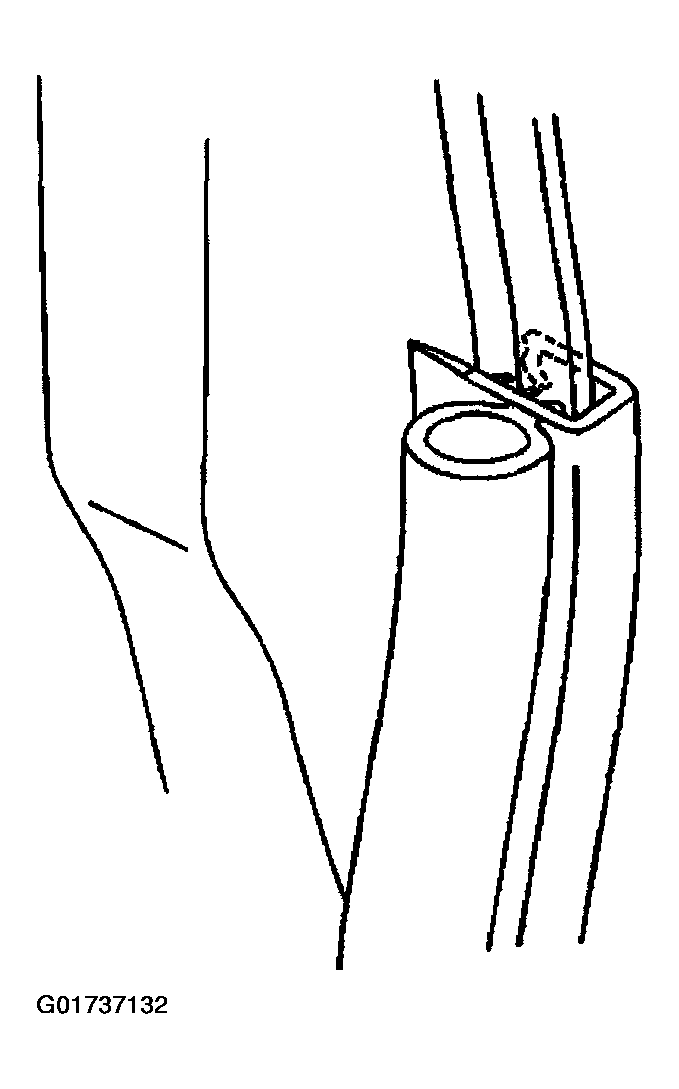

    Fig 2: Pulling Side Door Opening Weatherstrip From Flange
    G01737132Courtesy of GENERAL MOTORS CORP.
  9. Remove the side door opening weatherstrip from the vehicle.

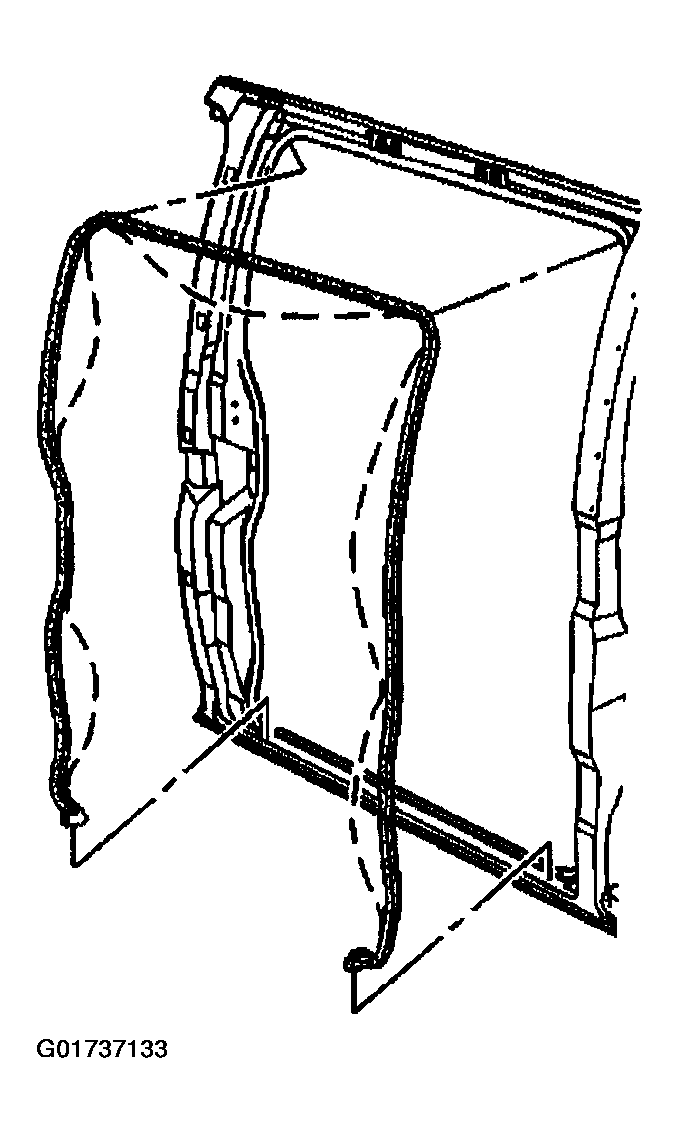

Fig 3: Removing Side Door Opening Weatherstrip From Vehicle
G01737133Courtesy of GENERAL MOTORS CORP.
