Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pins (1) that hold the weatherstrip to the upper door.
  2. Remove the weatherstrip (3) from the upper door.
  3. Clean the surface of the door with approved cleaning solvent.

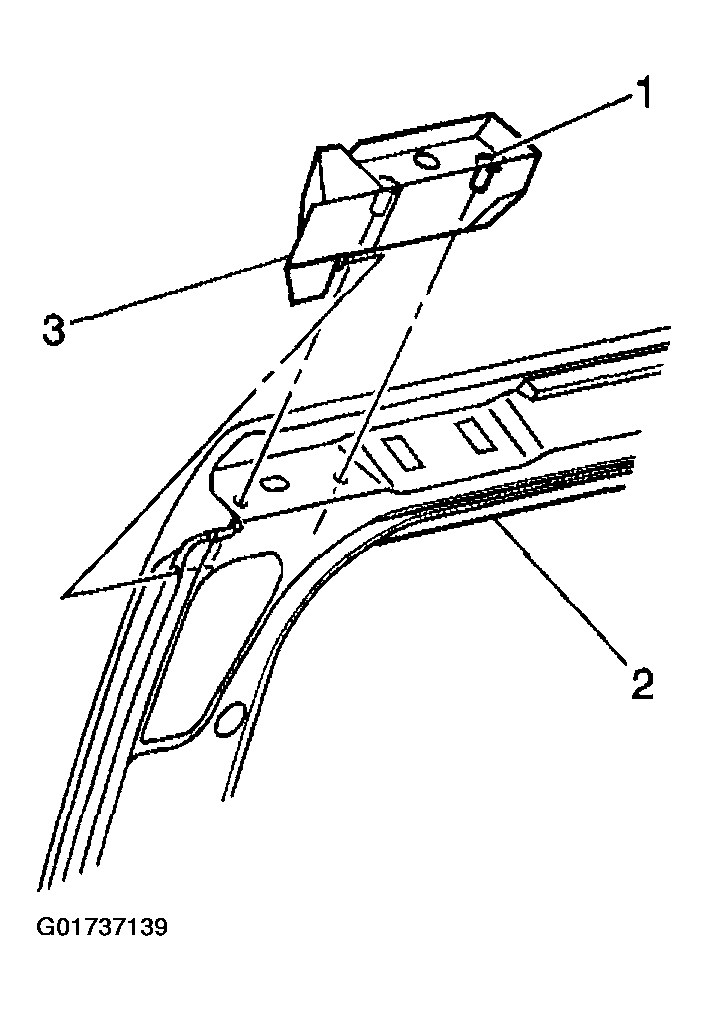

Fig 1: Removing Rear Side Door Weatherstrip
G01737139Courtesy of GENERAL MOTORS CORP.
