Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER .
  2. Remove the driver side body side rear trim panel. Refer to TRIM PANEL REPLACEMENT - BODY SIDE REAR .
  3. Remove the passenger side rear corner trim panel. Refer to .TRIM PANEL REPLACEMENT - BODY SIDE REAR .
  4. Remove the rear floor trim plate. Refer to FLOOR TRIM PLATE REPLACEMENT -- REAR .
  5. Remove the rear door opening frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR UPPER .
  6. Pull the rear door opening weatherstrip from the door opening pinch-weld flange. Use 3M Release Agent or the equivalent at the bottom ends of the rear door opening weatherstrip if needed.

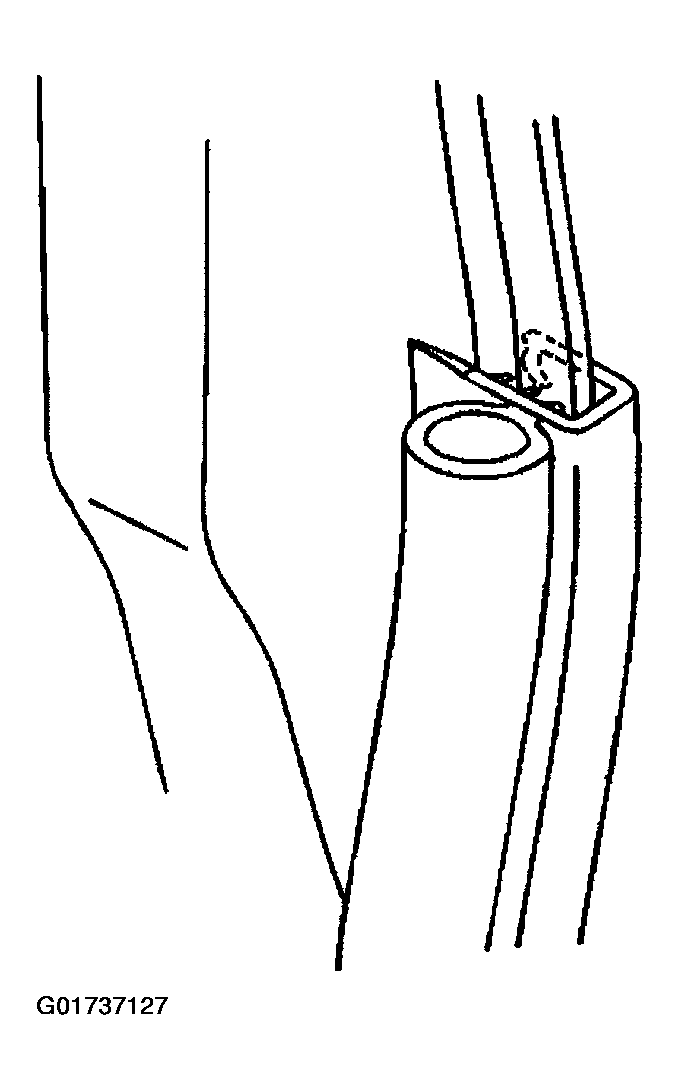

Fig 1: Removing Rear Door Opening Weatherstrip
G01737127Courtesy of GENERAL MOTORS CORP.
