Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door opening upper frame garnish molding. Refer to GARNISH MOLDING - FRONT DOOR OPENING UPPER FRAME .
  2. Remove the hinge pillar trim panel. Refer to TRIM REPLACEMENT - HINGE PILLAR .
  3. Remove the windshield garnish molding. Refer to WINDSHIELD GARNISH MOLDING REPLACEMENT .
  4. Remove the front door upper pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
  5. Remove the front door lower pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LOWER PILLAR .
  6. Remove the front door stepwell mat. Refer to MAT/CARPET REPLACEMENT - FRONT FLOOR .
  7. Gently pull the door opening weatherstrip from the door opening pinch-weld flange.

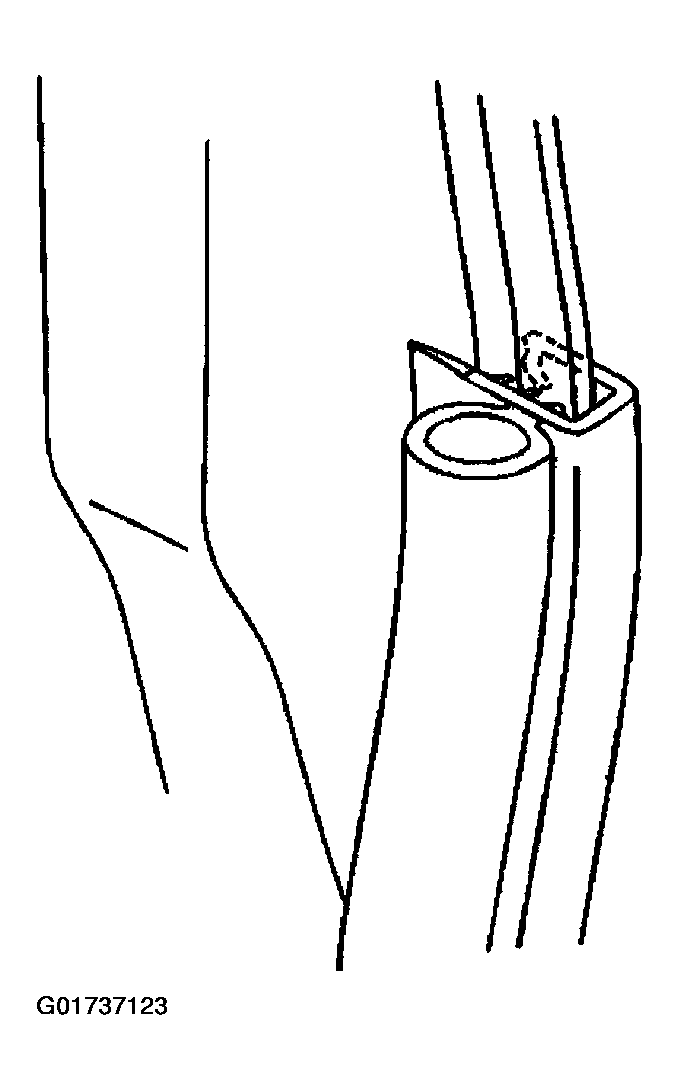

    8. Fig 1: Pulling Door Opening Weatherstrip From Door Opening Pinch-Weld Flange
    G01737123Courtesy of GENERAL MOTORS CORP.
  8. Remove the door opening weatherstrip from the vehicle.

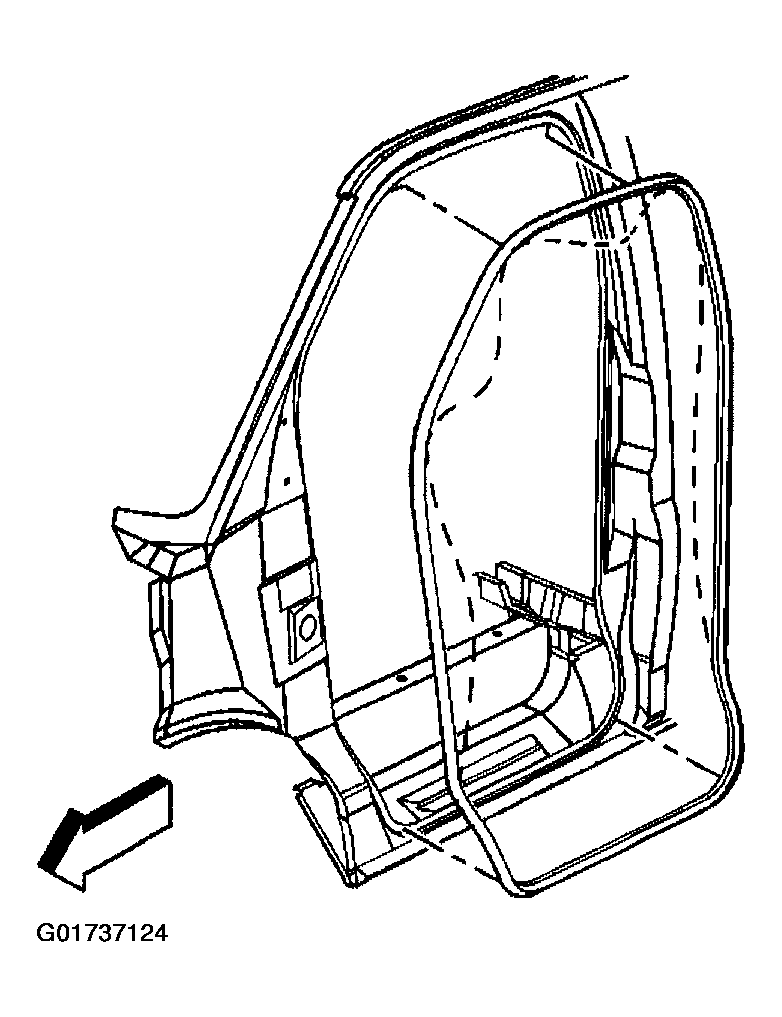

    9. Fig 2: Removing Front Door Opening Weatherstrip From Vehicle
    G01737124Courtesy of GENERAL MOTORS CORP.
