Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the weatherstrip into the roof rail.
  2. Press the retainers into the weatherstrip and then into the holes in the roof rail.

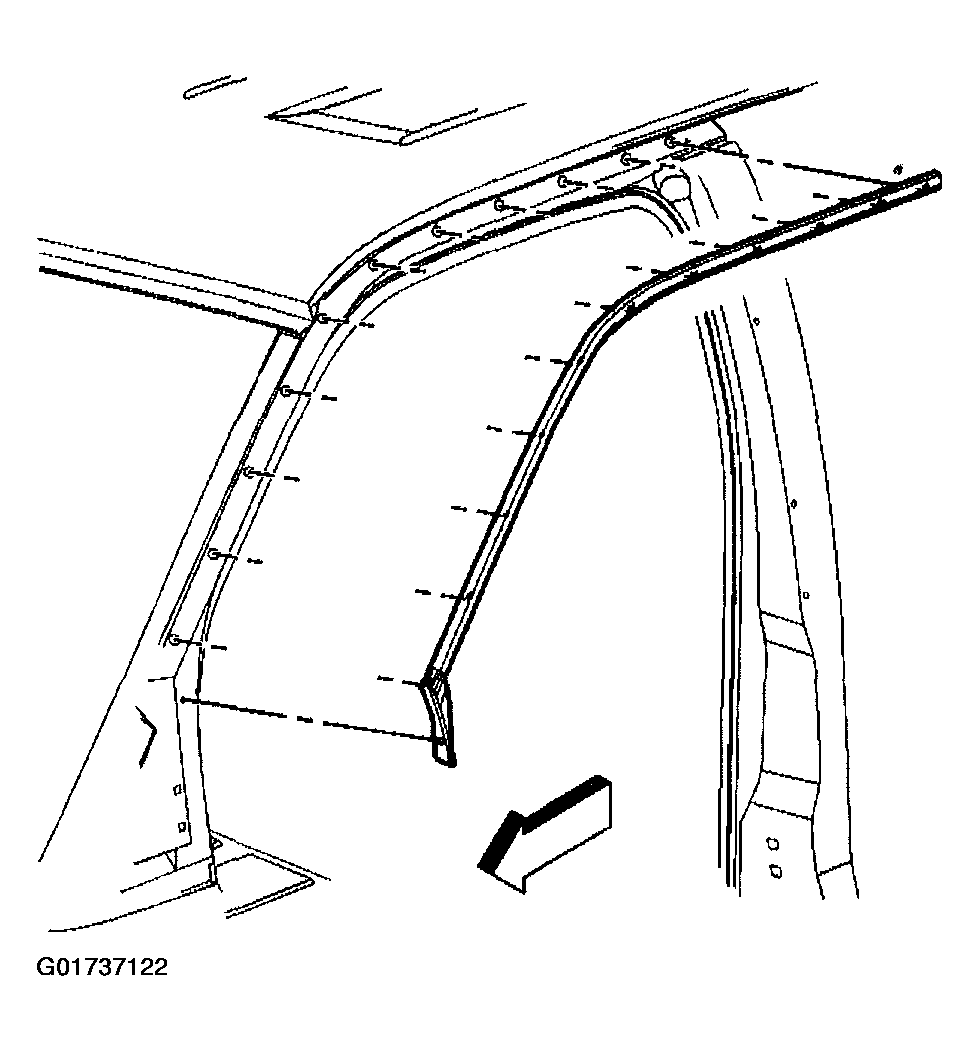

Fig 1: Installing Drip Rail Weatherstrip
G01737122Courtesy of GENERAL MOTORS CORP.
