Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel from the door. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the electrical connector from the door mounted speaker, if equipped.
  3. Remove the front door speaker from the door. Refer to SPEAKER REPLACEMENT - FRONT DOOR .
  4. Start at a corner and pull the water deflector (4) away from the door (1).

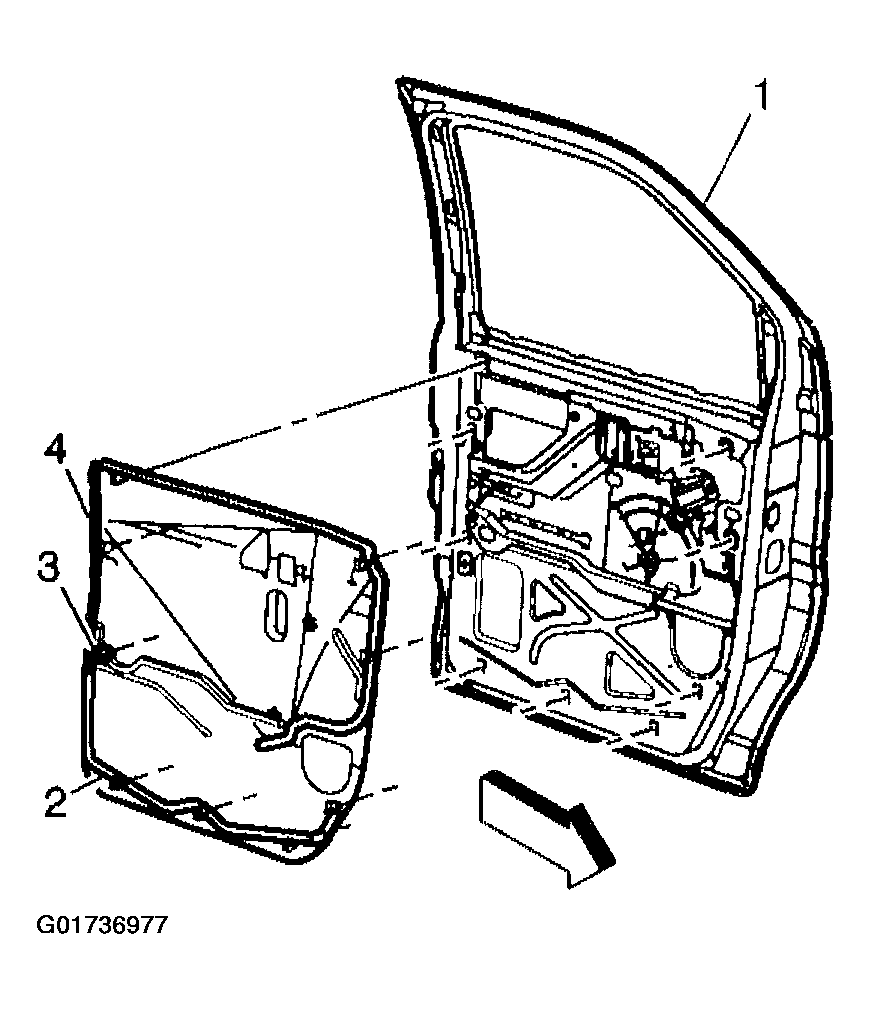

Fig 1: Removing Water Deflector (Front Door)
G01736977Courtesy of GENERAL MOTORS CORP.
