Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the sliding side door upper trim panel. Pull on the panel in order to disengage the retaining clips.
  2. Inspect the sliding side door upper trim panel for broken or missing clips.

    Replace the clips if needed.

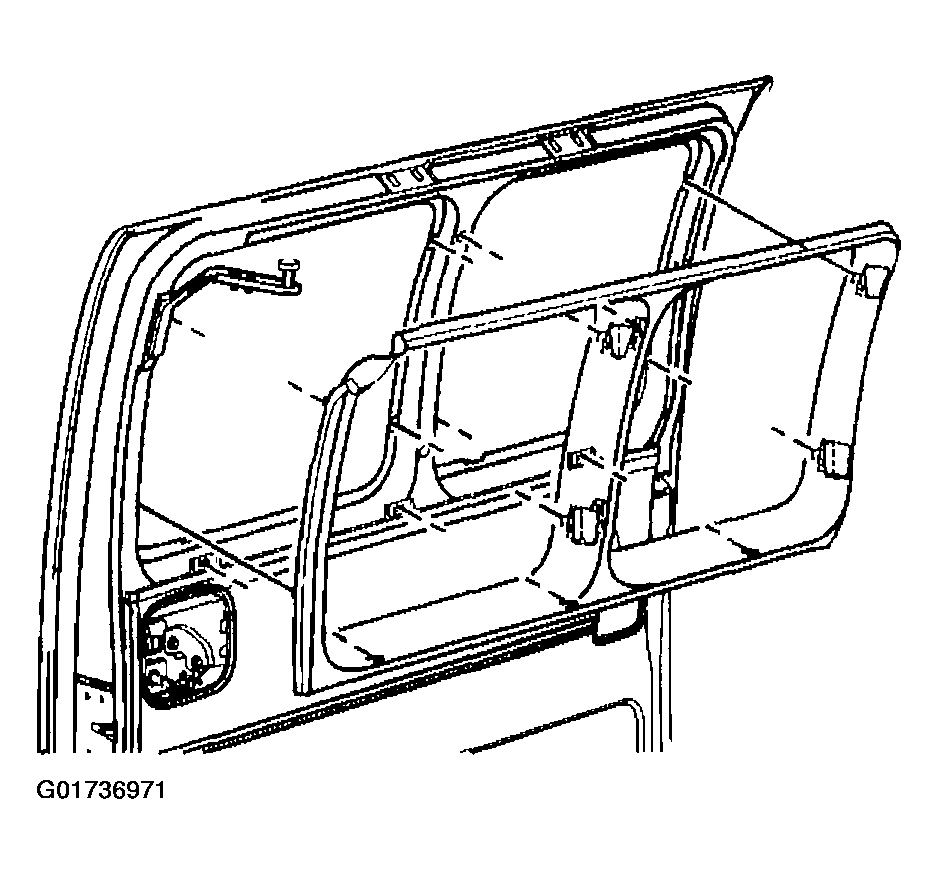

Fig 1: Removing Trim Panel (Sliding Door Upper)
G01736971Courtesy of GENERAL MOTORS CORP.
