Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door inside door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the sliding side door upper trim panel. Refer to Trim Panel Replacement - Sliding Door Upper .
  3. Lift up on the sliding side door lower trim panel in order to disengage the retaining tabs from the sliding side door.
  4. Remove the sliding side door lower trim panel from the vehicle.

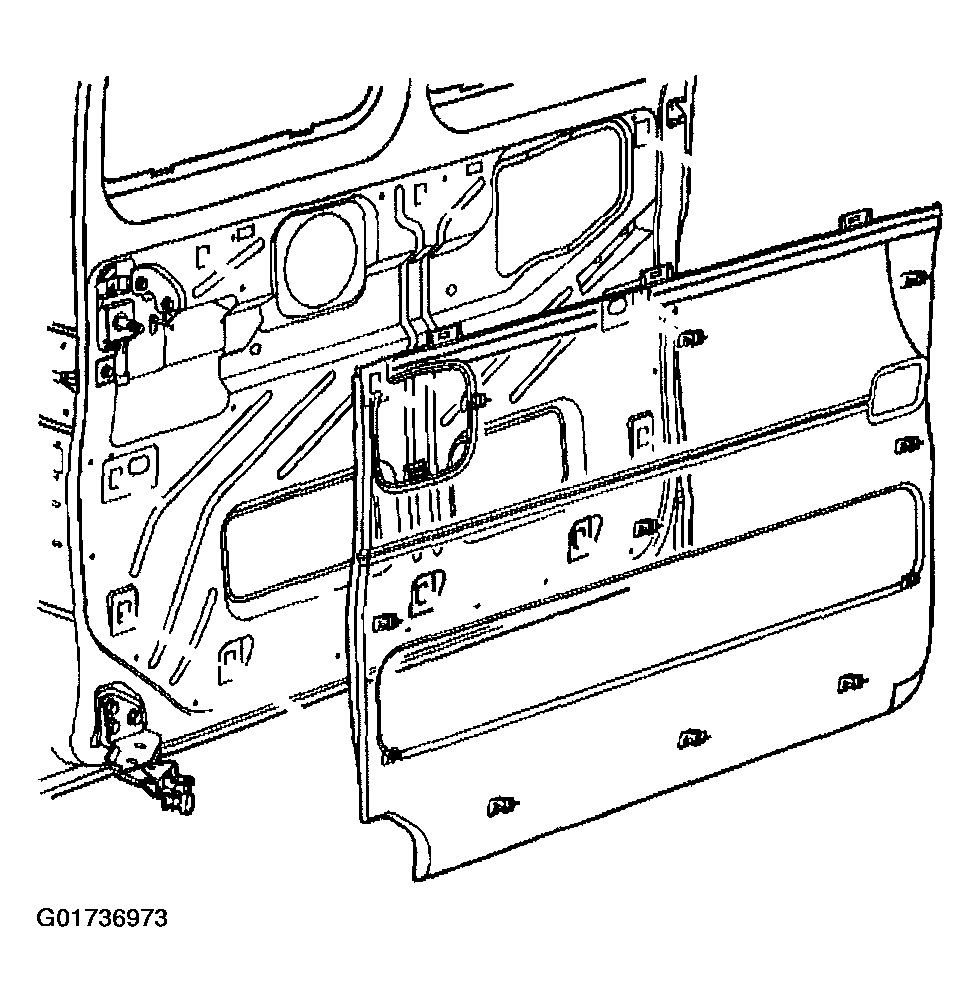

Fig 1: Removing Trim Panel (Sliding Door Lower)
G01736973Courtesy of GENERAL MOTORS CORP.
