Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not break the upper trim panel.

  1. Gently pull out the trim panel at the top of the window opening. Using a long, narrow screwdriver, pry the retaining clips apart in order to disengage the clips.
  2. Lift the side rear door trim panel up.
  3. Remove the side rear door trim panel from the door.
  4. Remove the side rear door trim panel from the vehicle.
  5. Inspect the side rear door trim panel for broken or missing retaining clips. Replace the retaining clips as needed.

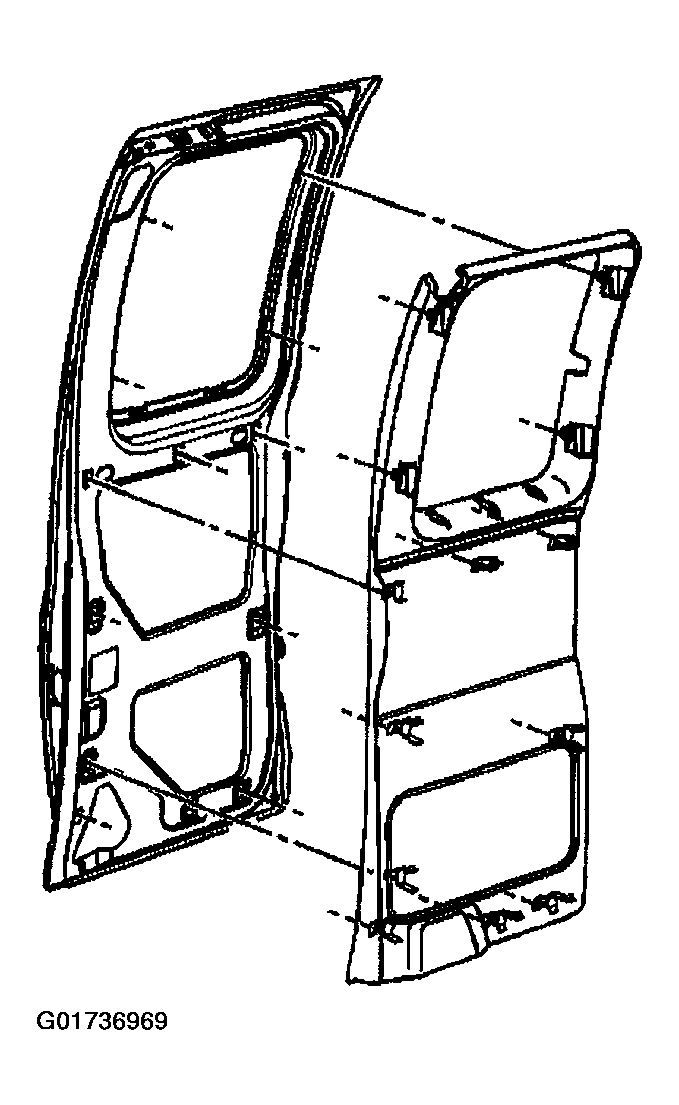

Fig 1: Removing Trim Panel (Side Rear Door)
G01736969Courtesy of GENERAL MOTORS CORP.
