Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use J 9886-01  Door Handle Clip Remover in order to remove the window regulator handle, if equipped.
  2. Remove the window regulator handle bezel, if equipped.
  3. Remove the front door garnish. Refer to Garnish Molding Replacement - Front Door Front .

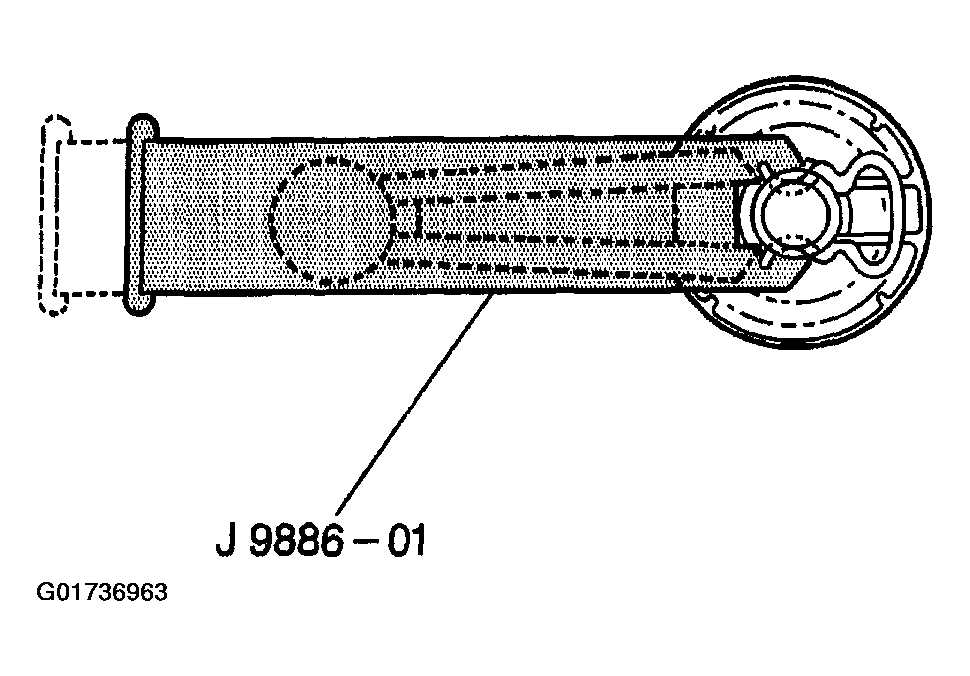

    Fig 1: Removing Window Regulator Handle
    G01736963Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door trim plate (1). Refer to Door Trim Plate Replacement (Manual Windows)  or Door Trim Plate Replacement (Power Windows)  or Door Trim Plate Replacement (Side/Rear Door)  .
  5. Remove the screws from the armrest.
  6. Lift up on the front door trim panel in order to release the retaining tabs (2) on the front door trim panel.
  7. Remove the front door trim panel from the vehicle.

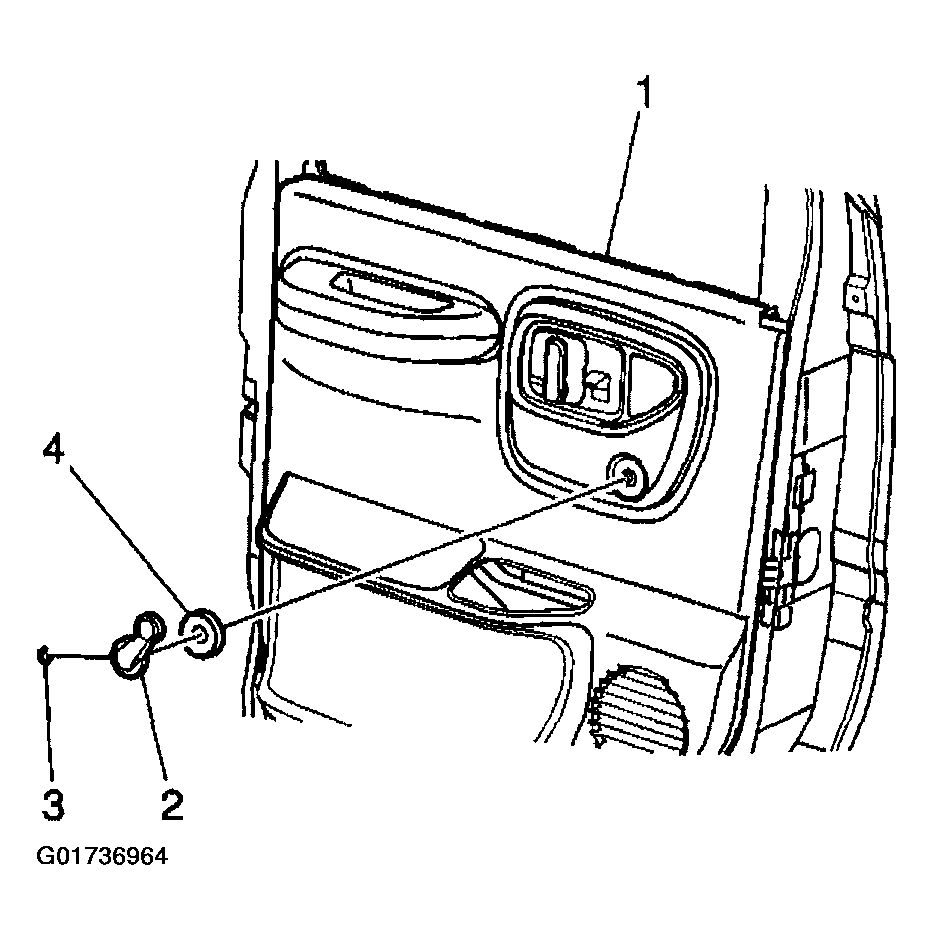

Fig 2: Removing Front Door Trim Panel
G01736964Courtesy of GENERAL MOTORS CORP.
