Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door opening frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SIDE DOOR OPENING FRAME .
  2. Remove the bolts (2) that retain the side door upper striker (1) to the door.
  3. Remove the side door upper striker (1) from the door opening.

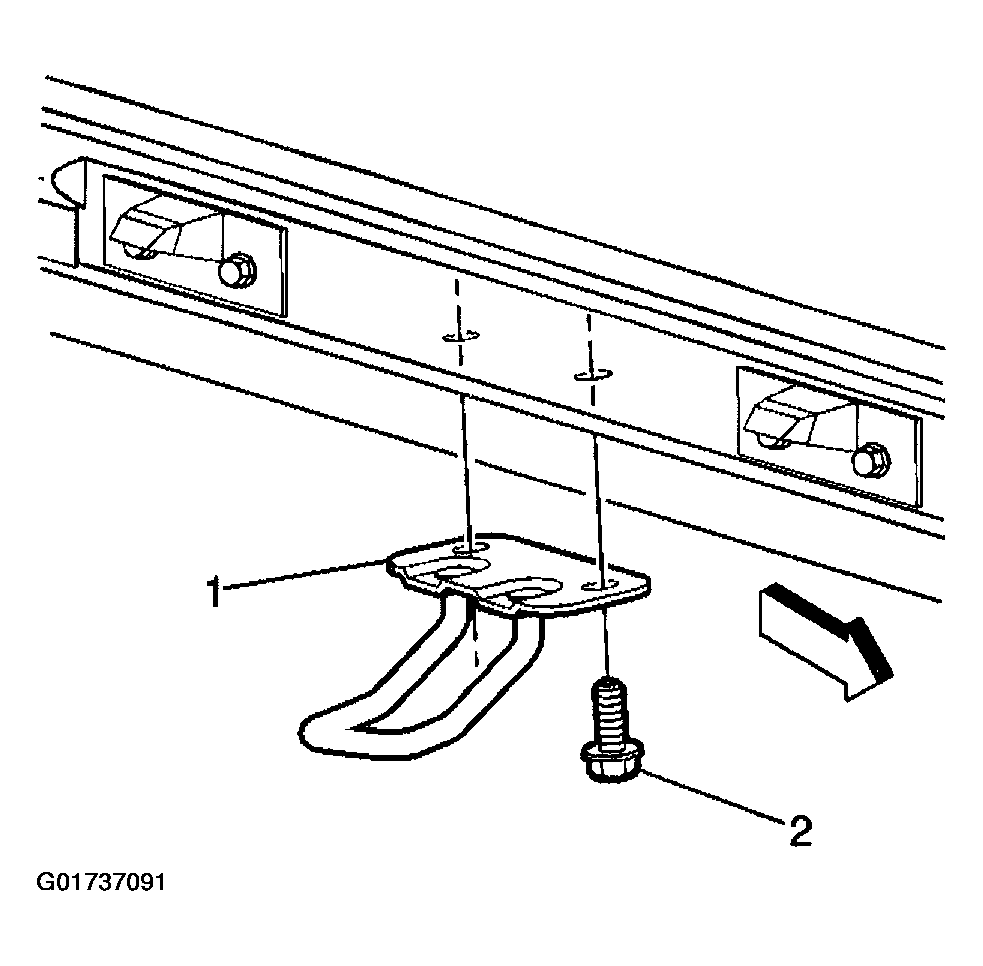

Fig 1: Removing Side Door Upper Striker
G01737091Courtesy of GENERAL MOTORS CORP.
