Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side door upper striker (1) to the door opening.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the bolts (2) that retain the side door upper striker (1) to the door opening. Tighten the bolts to 10 N.m (89 lb in).
  3. Install the side door opening frame garnish molding. Refer to GARNISH MOLDING REPLACEMENT - SIDE DOOR OPENING FRAME .

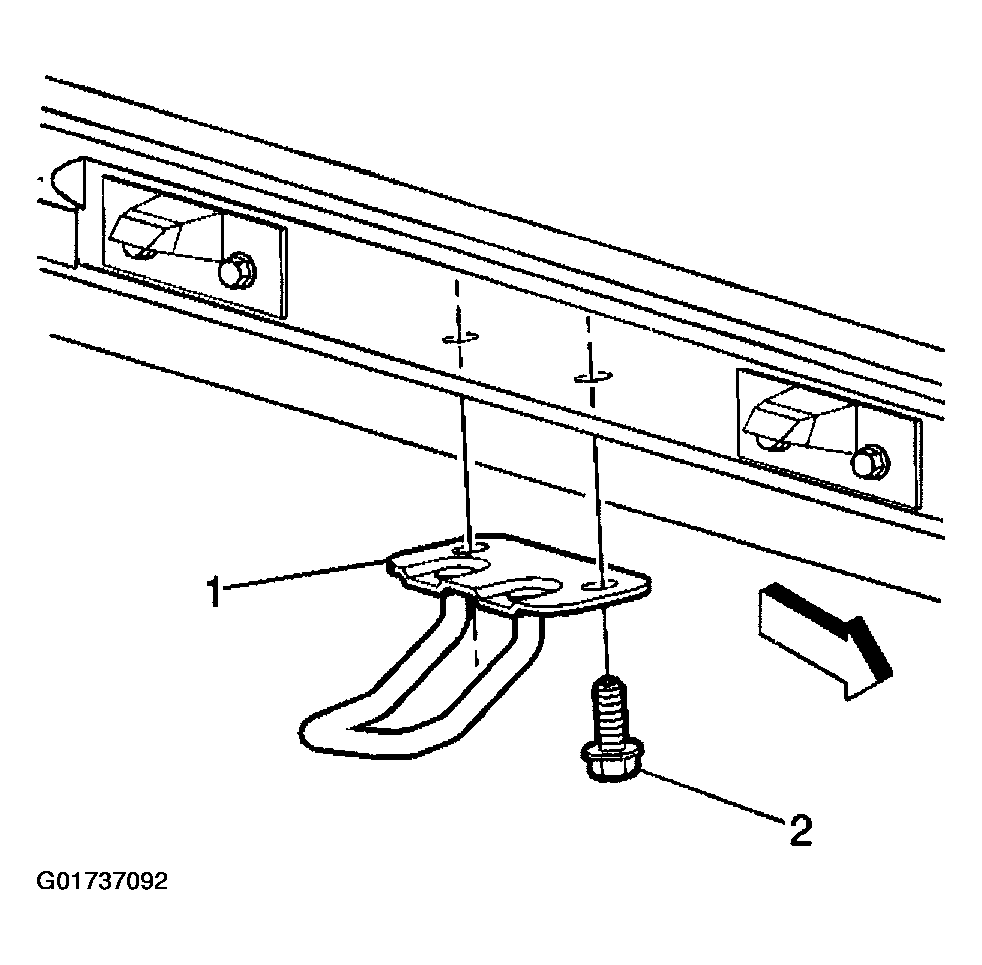

Fig 1: Installing Side Door Upper Striker
G01737092Courtesy of GENERAL MOTORS CORP.
