Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  2. Remove the bolts (2) that retain the lower striker (1) to the stepwell.
  3. Remove the lower striker (1) from the vehicle.

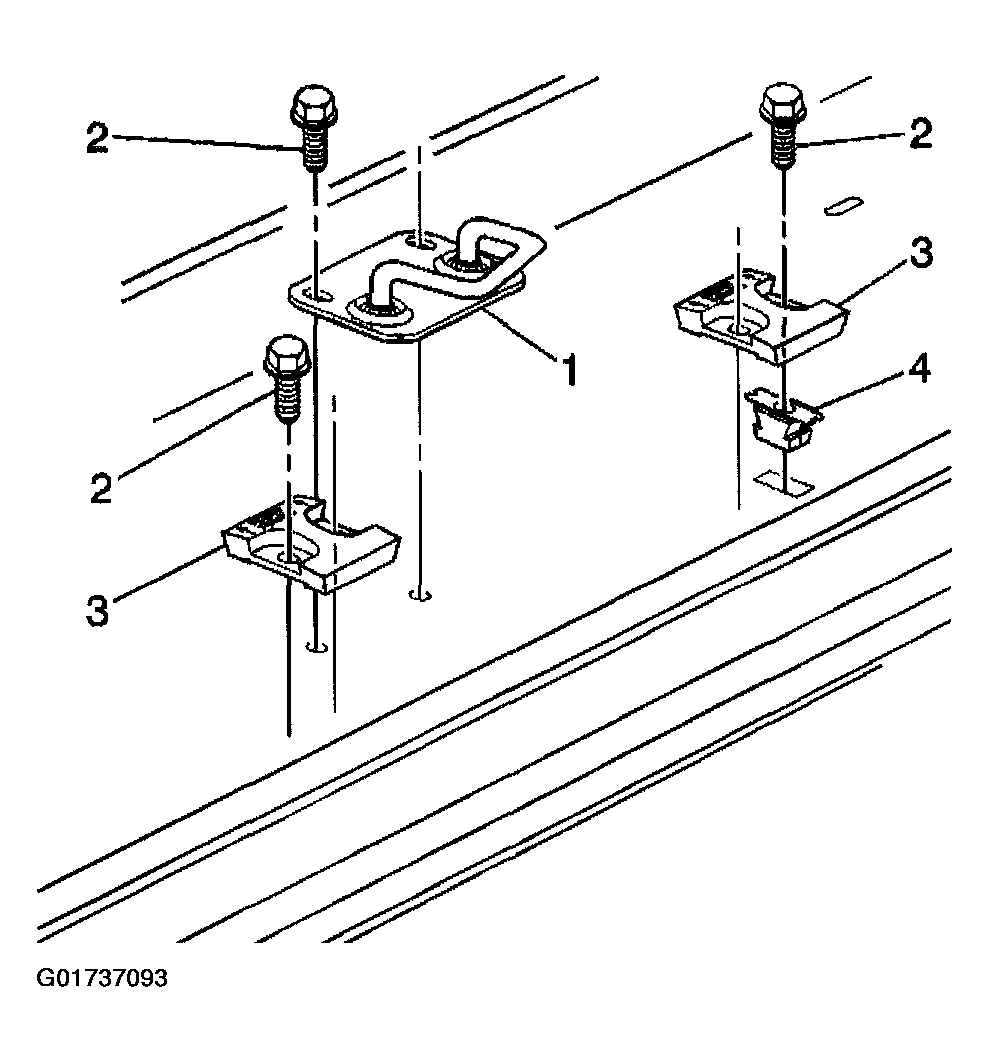

Fig 1: Removing Lower Striker
G01737093Courtesy of GENERAL MOTORS CORP.
