Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  2. Remove the nut that retains the sliding door stop to the body.
  3. Remove the sliding door stop from the vehicle.

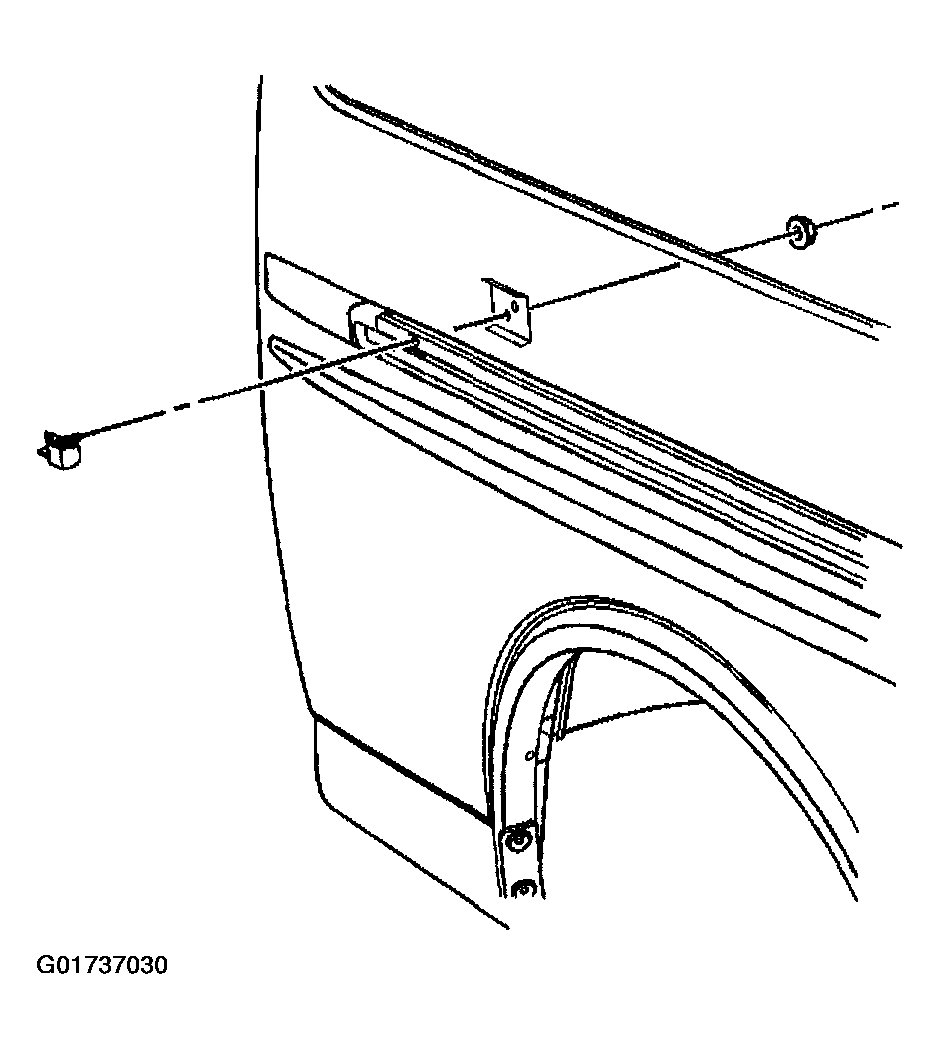

Fig 1: Removing Sliding Door Stop
G01737030Courtesy of GENERAL MOTORS CORP.
