Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  2. Remove the bolts that retain the check assembly cover.
  3. Remove the check assembly cover from the stepwell.

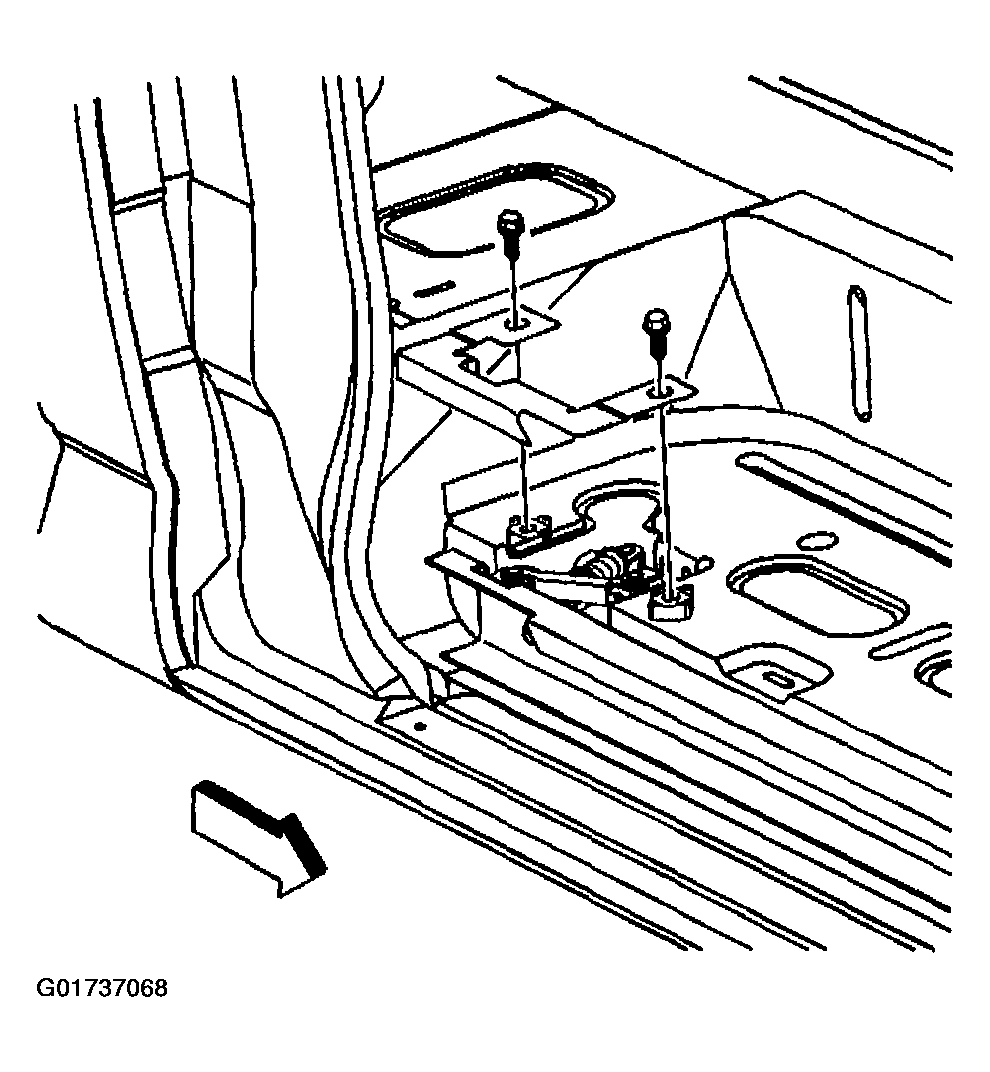

    Fig 1: Removing Check Assembly Cover From Stepwell
    G01737068Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts (2) that retain the check assembly (1) to the sliding side door lower track (3).
  5. Remove the check assembly (1) from the sliding side door lower track (3).
Fig 2: Removing Sliding Door Check Assembly
G01737069Courtesy of GENERAL MOTORS CORP.
