Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

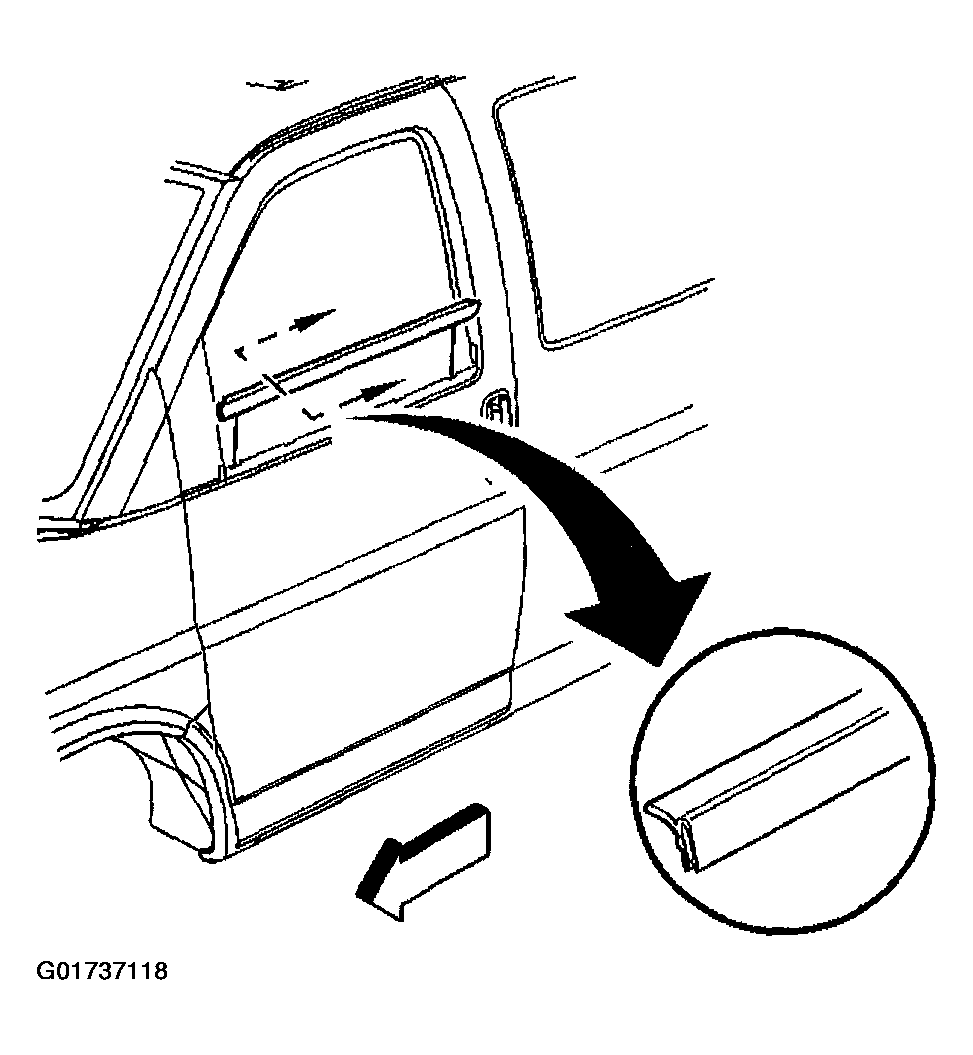

- Spray the inside of the sealing strip with a water and soap solution per GM P/N 9985662, or equivalent.
- Install the sealing strip to the pinch-weld flange by tilting the top edge of the sealing strip slightly outboard to ensure the pinch weld flange correctly enters the retention clips.
- Push down on sealing strip until all clips are fully seated.
- Raise the window.
