Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door trim panel from the door. Refer to Trim Panel Replacement - Door .
  2. Lower the window all the way down.
  3. Remove the sealing strip from the pinch-weld flange by gently pulling up on the sealing strip.

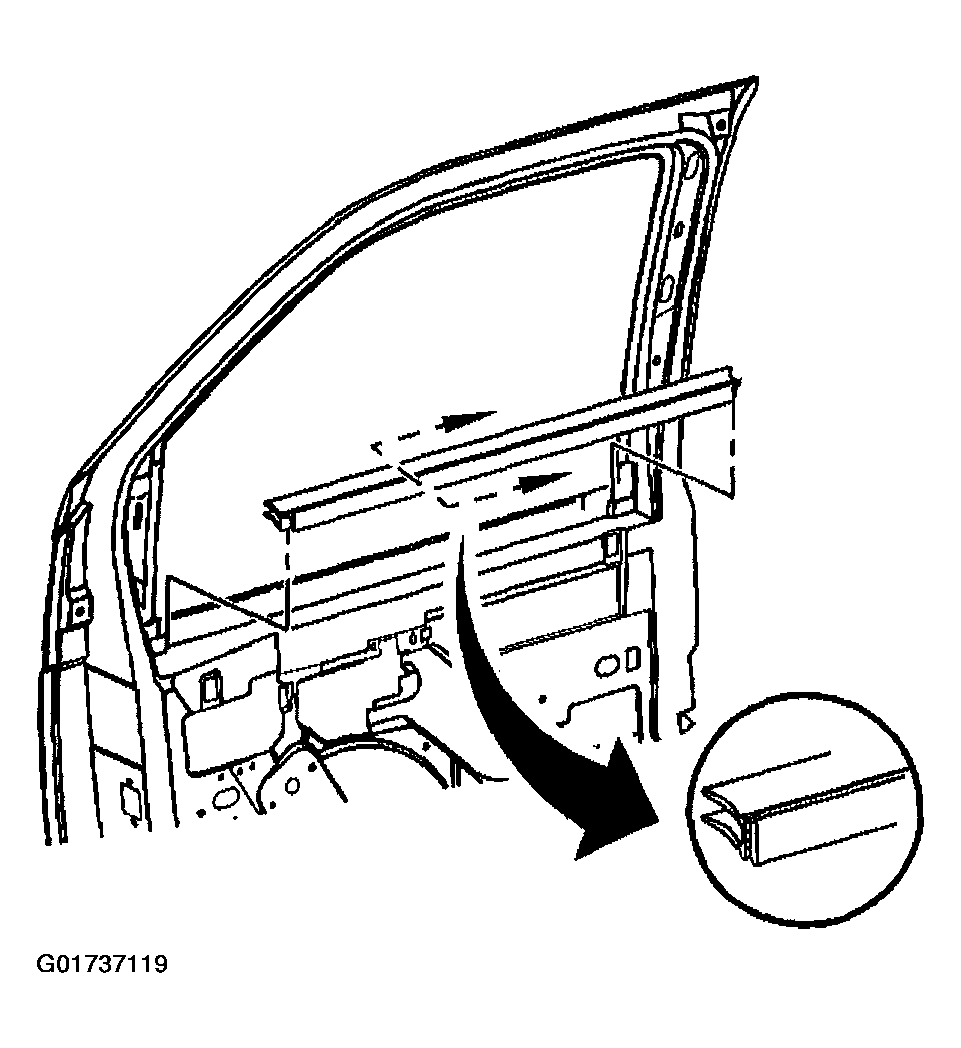

Fig 1: Removing Front Door Window Belt Inner Sealing Strip
G01737119Courtesy of GENERAL MOTORS CORP.
