Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  2. Remove the sliding side door lower roller bracket. Refer to Roller Bracket Replacement - Lower .
  3. Remove the bolts (2) that retain the sliding side door lower track (1) to the vehicle.
  4. Remove the sliding side door lower track (1) from the vehicle.

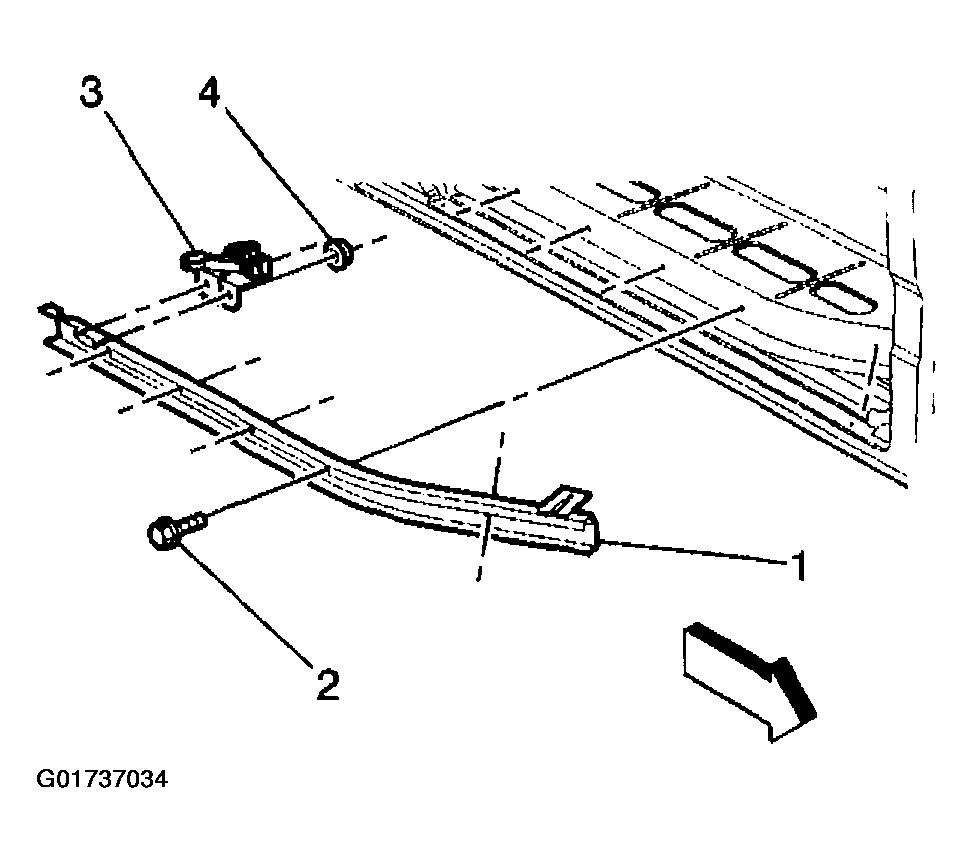

Fig 1: Removing Sliding Side Door Lower Track
G01737034Courtesy of GENERAL MOTORS CORP.
