Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  2. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower .
  3. Remove the sliding side door center track stop nuts and washers from the vehicle.
  4. Remove the sliding side door center track stop from the vehicle.
  5. Remove the sliding side door center track cap nut and plate from the vehicle.
  6. Remove the sliding side door center track cap from the vehicle.
  7. Remove the sliding side door center roller bracket. Refer to Roller Bracket Replacement - Center .
  8. Remove the nuts and the washers that retain the sliding side door center track to the body.
  9. Remove the sliding side door center track from the vehicle.

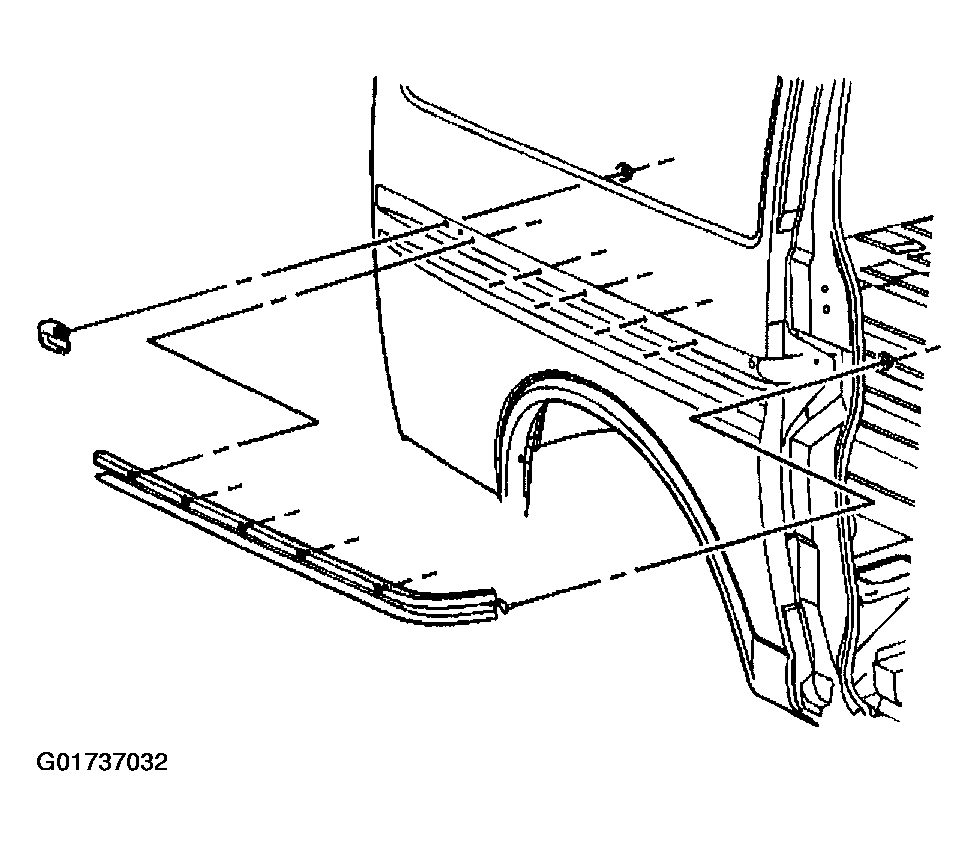

Fig 1: Removing Sliding Side Door Center Track
G01737032Courtesy of GENERAL MOTORS CORP.
