Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door upper roller bracket cover. Refer to Roller Bracket Cover Replace - Sliding Door Upper .
  2. Remove the sliding side door upper track garnish molding. Refer to Garnish Molding - Rear Side Door Upper Track .
  3. Remove the sliding side door upper trim panel. Refer to Trim Panel Replacement - Sliding Door Upper .
  4. Remove the passenger side front corner garnish molding. Refer to GARNISH MOLDING REPLACEMENT - RIGHT SIDE FRONT .
  5. Remove the bolts that retain the upper roller bracket to the door.
  6. Remove the sliding side door upper roller bracket from the rear of the upper track.
  7. Remove the sliding side door upper roller bracket from the vehicle.

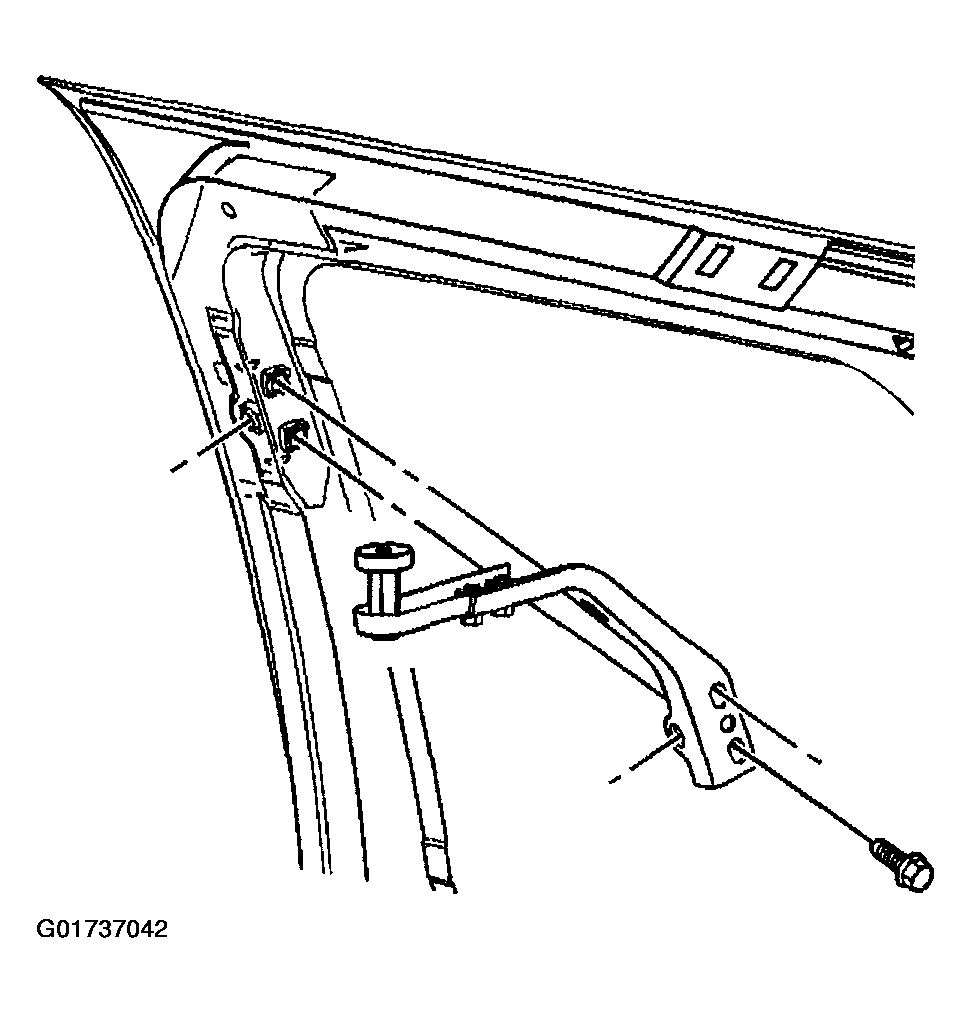

Fig 1: Removing Sliding Side Door Upper Roller Bracket
G01737042Courtesy of GENERAL MOTORS CORP.
