Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .
  2. Remove the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  3. Remove the sliding side door upper roller bracket cover. Refer to Roller Bracket Cover Replace - Sliding Door Upper .
  4. Remove the bolts that retain the sliding side door lower roller bracket to the door.
  5. Remove the sliding side door lower roller bracket from the track.
  6. Remove the sliding side door lower roller bracket from the vehicle.

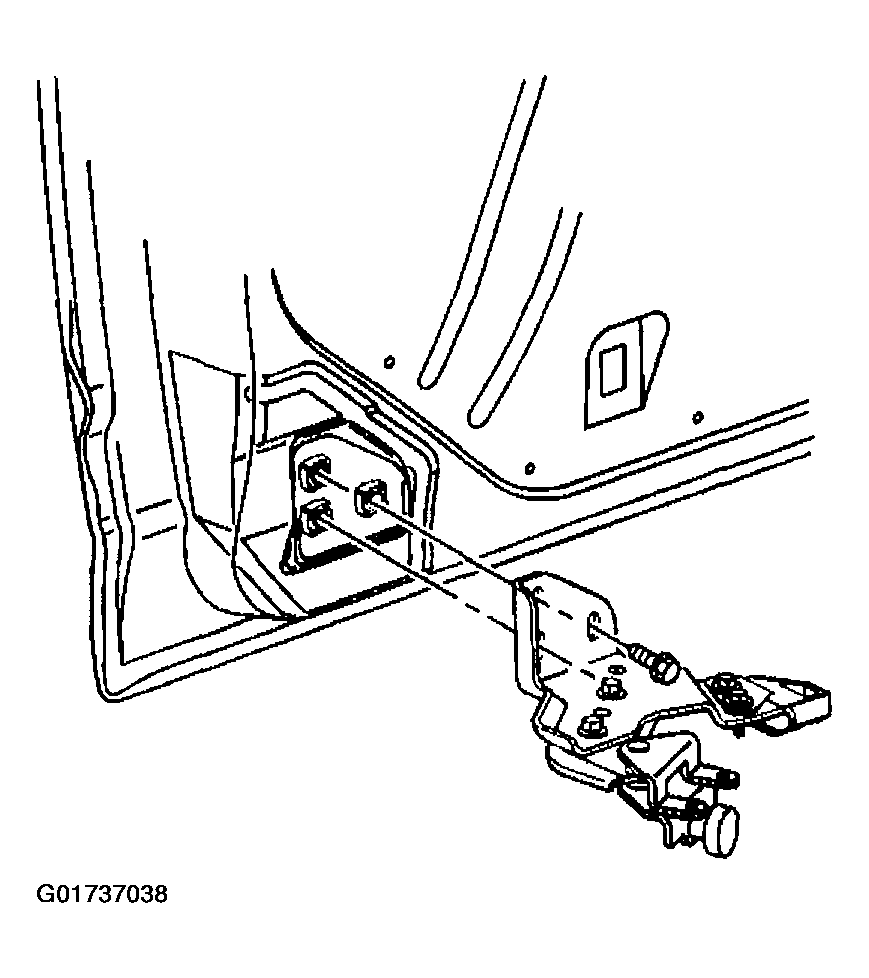

Fig 1: Removing Sliding Side Door Lower Roller Bracket
G01737038Courtesy of GENERAL MOTORS CORP.
