Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sliding door lower roller bracket to the vehicle.
  2. Install the sliding door lower roller bracket to the track.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the bolts that retain the sliding side door lower roller bracket to the door. Tighten the bolts to 25 N.m (18 lb ft).
  4. Install the sliding side door check assembly. Refer to Sliding Door Check Replacement .
  5. Install the side door stepwell mat. Refer to MAT REPLACEMENT - STEPWELL .

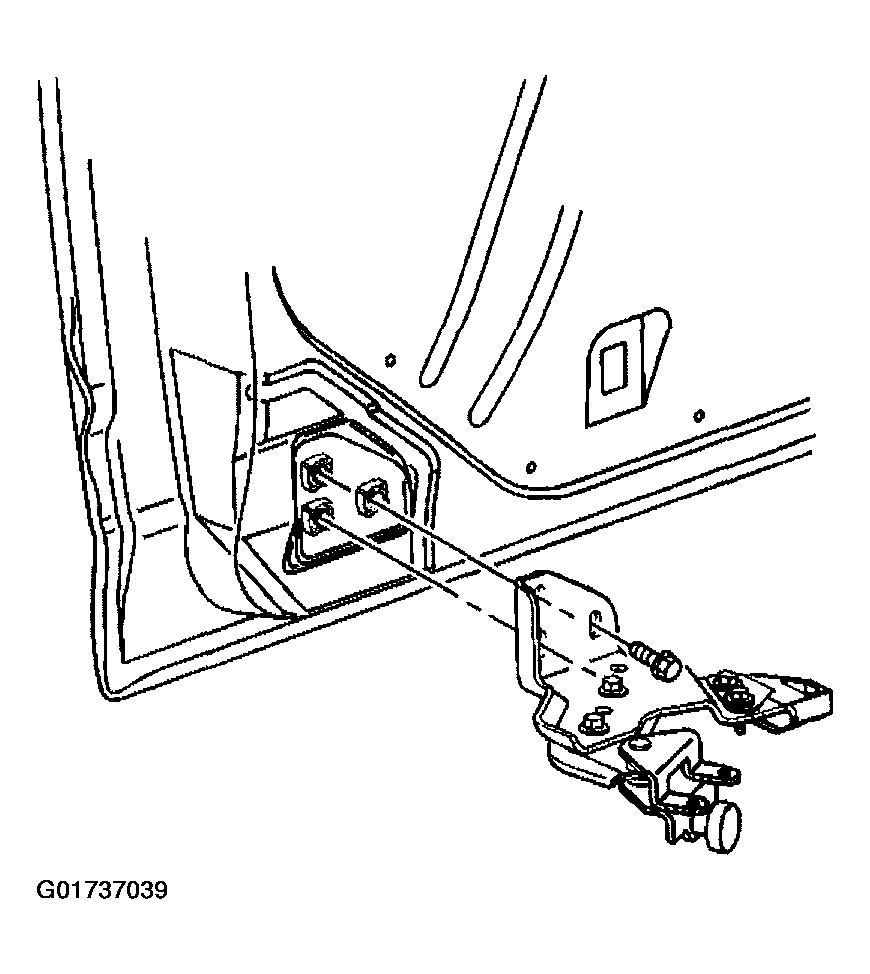

Fig 1: Installing Sliding Door Lower Roller Bracket
G01737039Courtesy of GENERAL MOTORS CORP.
