Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower .
  2. Remove the passenger side body side trim panel. Refer to TRIM PANEL REPLACEMENT - RIGHT BODY SIDE .
  3. Remove the sliding side door stop. Refer to Sliding Door Stop Replacement .
  4. Remove the bolts (4) that retain the sliding side door center roller bracket (1) to the door.
  5. Remove the nuts (2) that retain the sliding side door center roller bracket (1) to the door.
  6. Slide the sliding side door center roller bracket (1) from the rear of the track.
  7. Remove the sliding side door center roller bracket (1) from the vehicle.

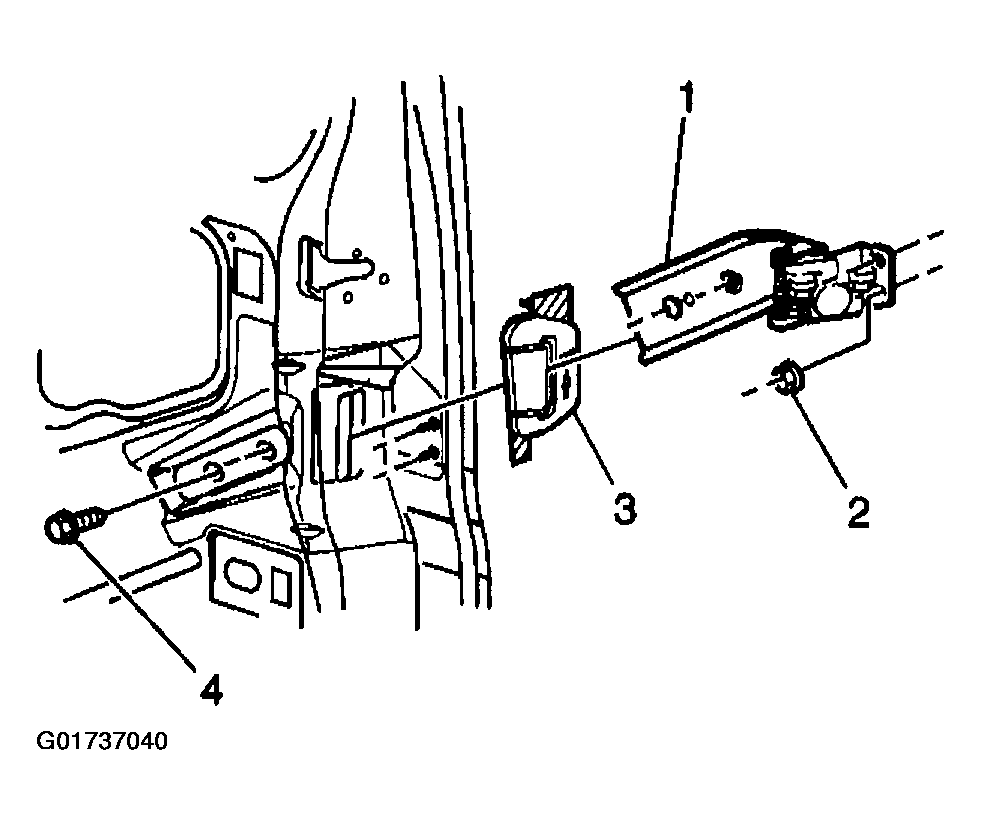

Fig 1: Removing Sliding Side Door Center Roller Bracket
G01737040Courtesy of GENERAL MOTORS CORP.
