Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door garnish molding. Refer to Garnish Molding Replacement - Front Door Front .
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
  3. Remove the electrical connector from the rearview mirror.
  4. Remove the nuts that retain the power rearview mirror to the door.
  5. Remove the power rearview mirror and the harness from the door.

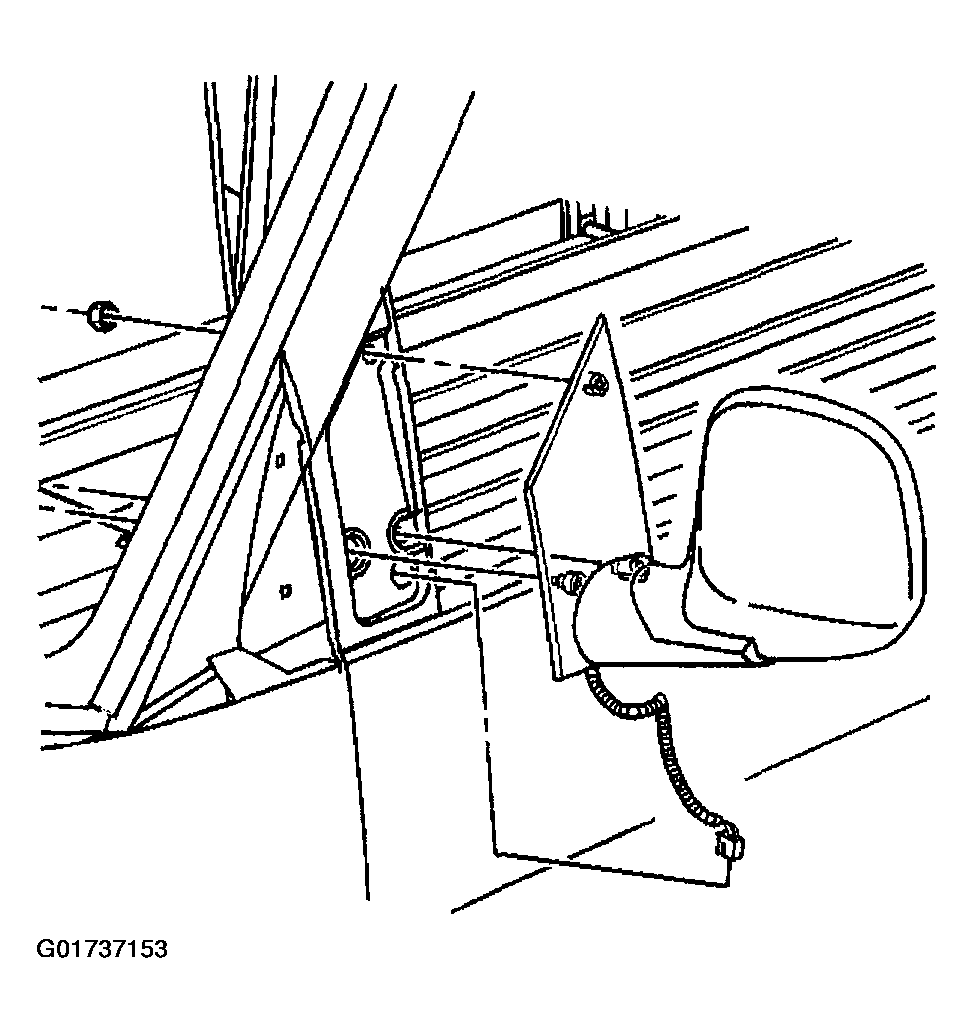

Fig 1: Removing Power Mirror
G01737153Courtesy of GENERAL MOTORS CORP.
