Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the commercial outside rearview mirror head from the vehicle.
  2. Remove the nuts that retain the commercial outside rearview mirror braces to the door.
  3. Remove the commercial outside rearview mirror braces from the vehicle.

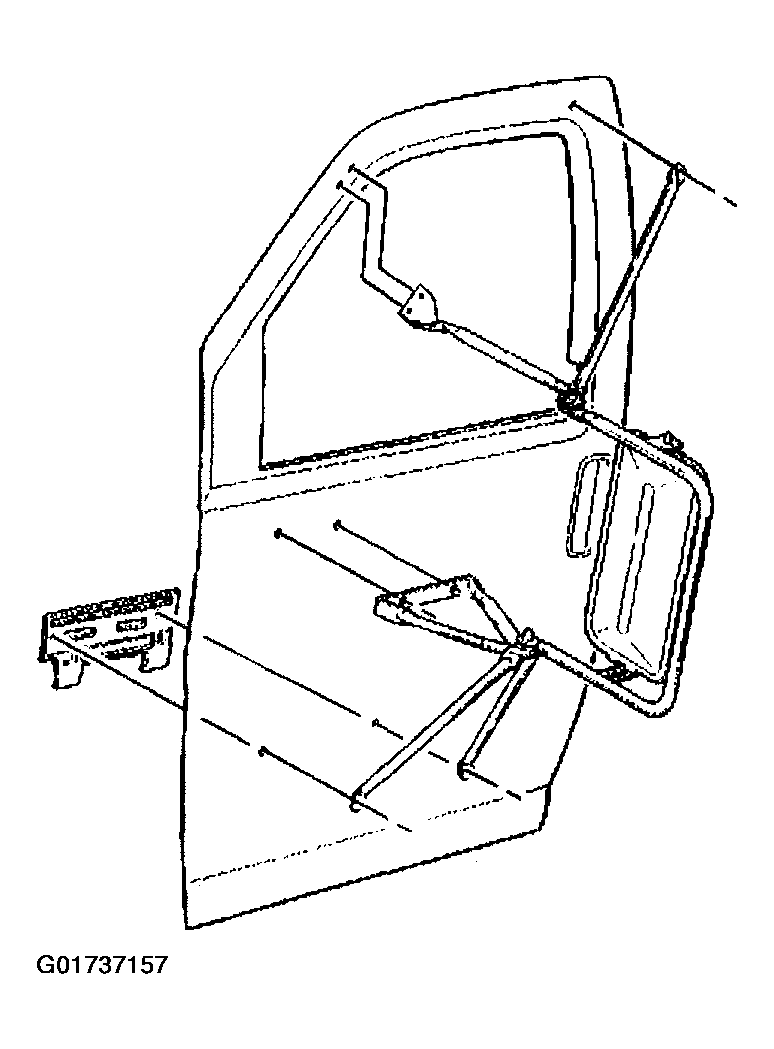

Fig 1: Removing Commercial Rearview Mirror
G01737157Courtesy of GENERAL MOTORS CORP.
