Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door garnish molding. Refer to Garnish Molding Replacement - Front Door Front .
  2. Remove the electrical connector from the rearview mirror.
  3. Remove the nuts that retain the rearview mirror filler to the door.
  4. Remove the rearview mirror filler from the door.

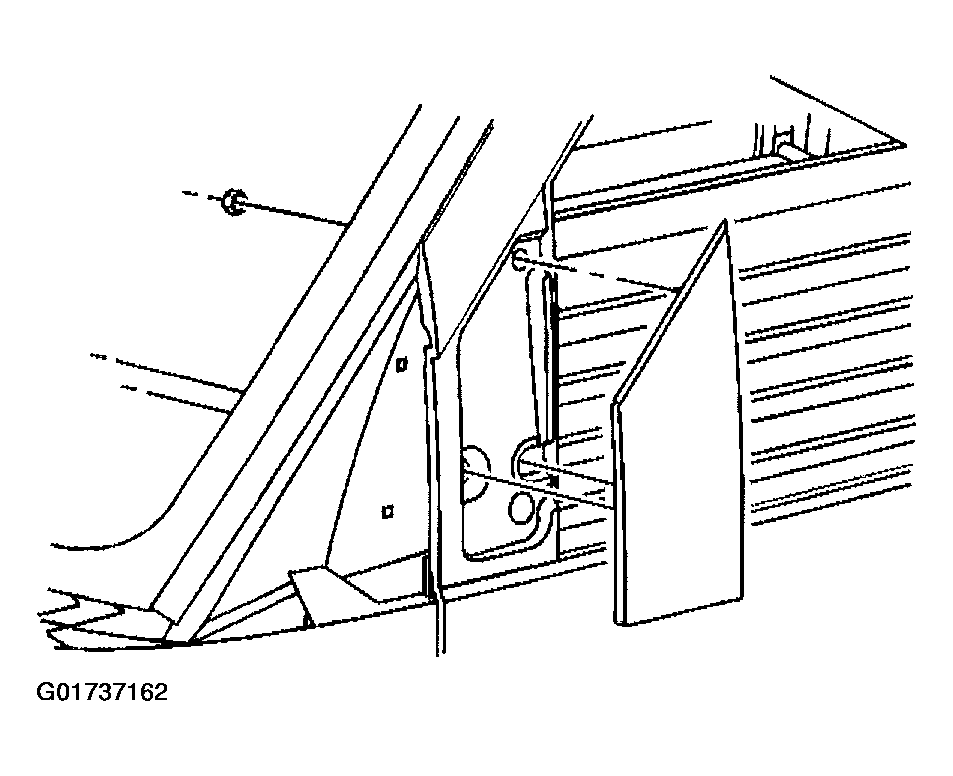

Fig 1: Removing Rearview Mirror Filler
G01737162Courtesy of GENERAL MOTORS CORP.
