Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower .
  2. Remove the lock rods from the sliding side door rear lock.
  3. Remove the bolts that retain the sliding side door rear lock to the sliding side door.
  4. Remove the sliding side door rear lock from the door.
  5. Remove the sliding side door rear lock from the vehicle.

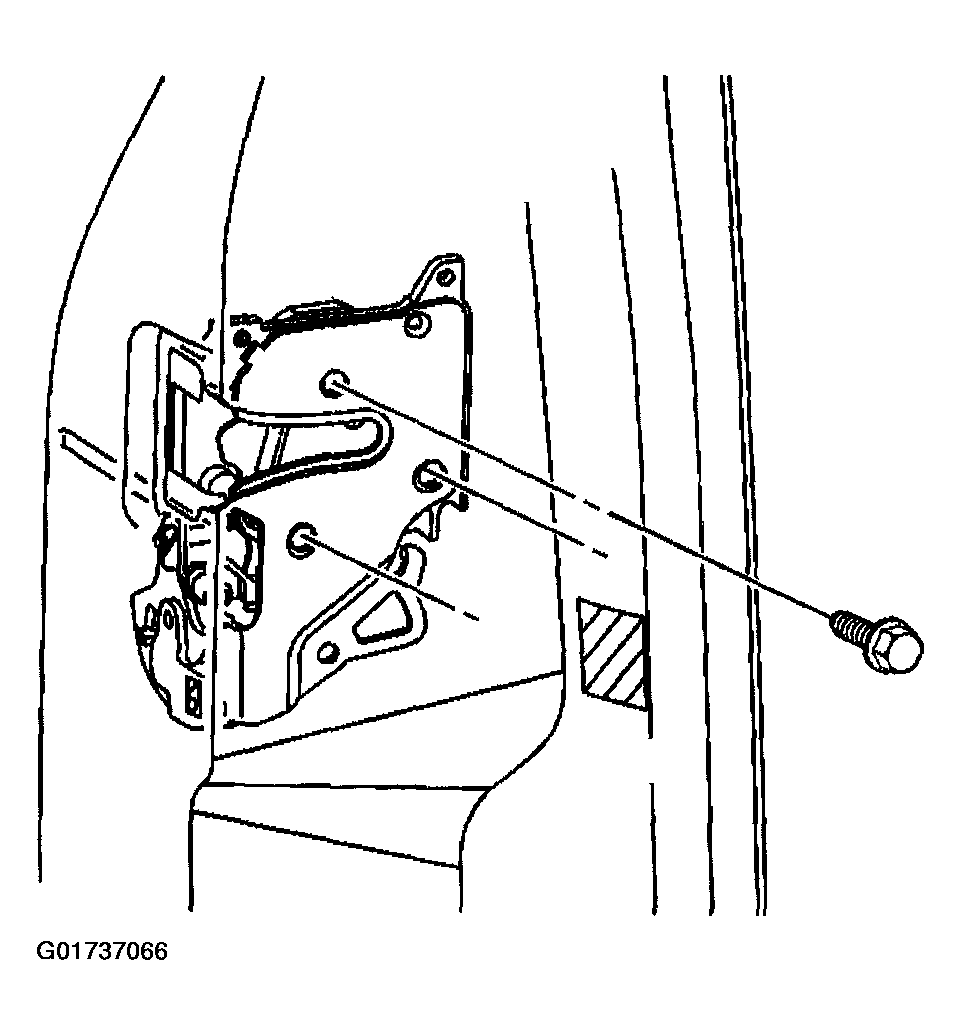

Fig 1: Removing Sliding Side Door Rear Lock
G01737066Courtesy of GENERAL MOTORS CORP.
