Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the lock rods from the side front door lock (1).
  3. Disconnect the electrical connector from the side front door lock (1), if needed.
  4. Remove the screw (2) that retain the side front door lock (1) to the door.
  5. Remove the side front door lock (1) from the door.

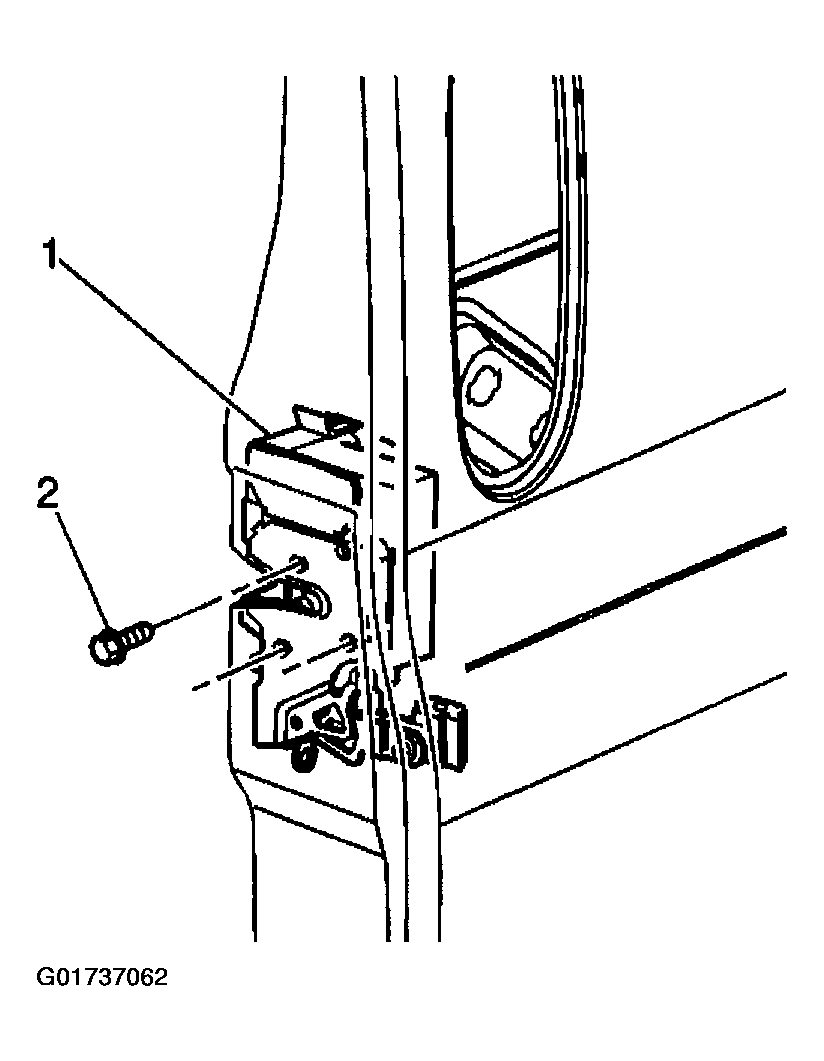

Fig 1: Removing Side Front Door Lock
G01737062Courtesy of GENERAL MOTORS CORP.
