Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important: The door ajar switch is contained within the lock of the rear door. Therefore replacement of the lock will include the replacement of the rear door ajar switch.

Remove the right side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
Remove the lock rods (4) from the lock (1).
Remove the electrical connector from the lock (1).
Remove the screws (2) that retain the lock (1) to the right side rear door.
Remove the lock (1) from the right side rear door.
Remove the lock (1) from the vehicle.

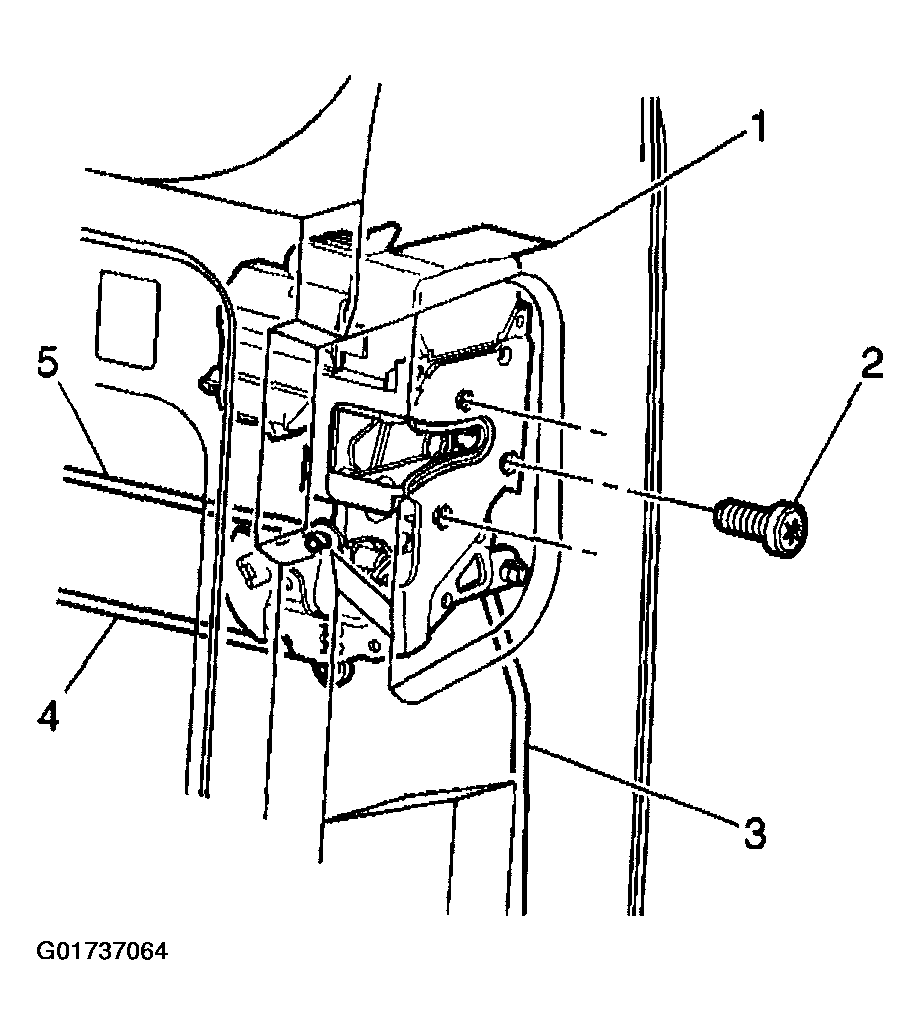

Fig 1: Removing Rear Door Lock

Courtesy of GENERAL MOTORS CORP.
