Removal Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
Important: The door ajar switch is contained within the lock. Therefore, removal of the lock will include the removal of the door ajar switch.
- Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
- Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
- Remove the rear run channel from the door. Refer to Window Run Channel Replacement .
- Remove the lock rods from the lock.

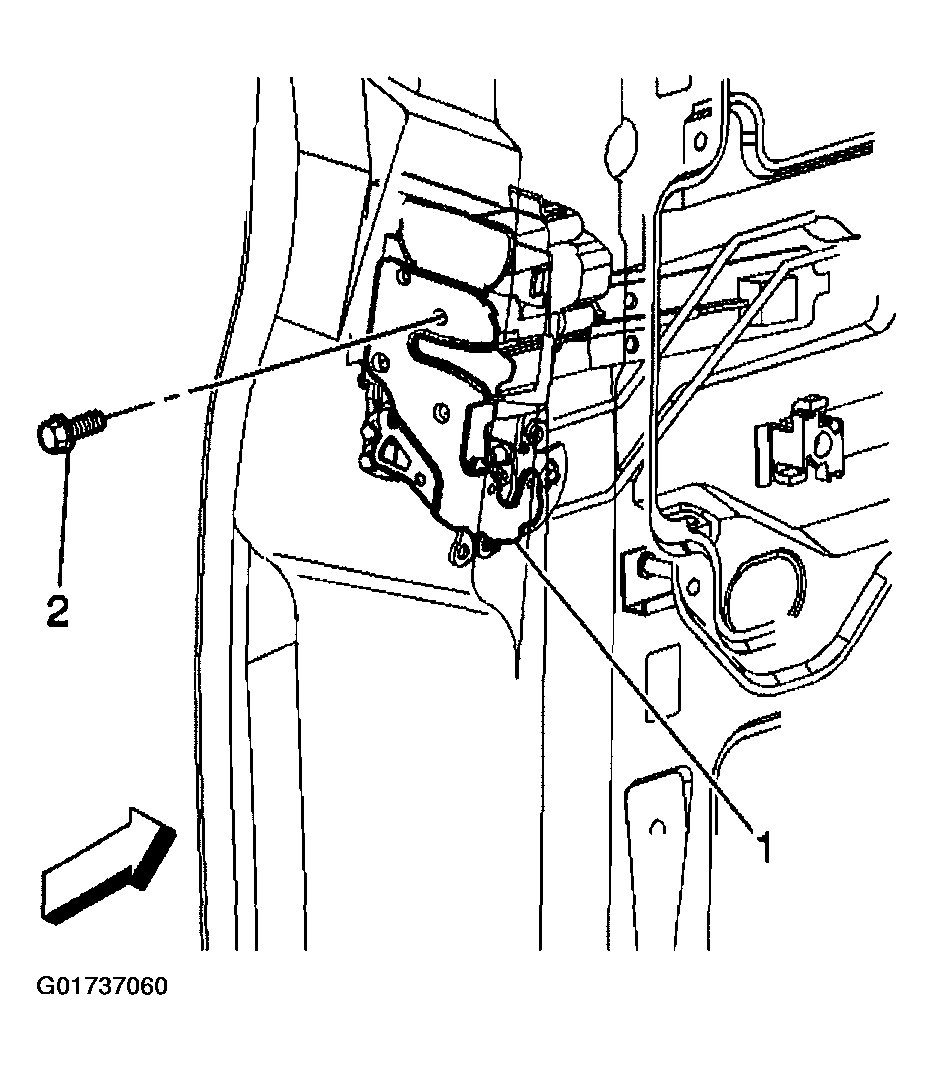

- Remove the electrical connectors from the lock (1).
- Remove the lock rod guide from the door lock (1).
- Remove the bolts that retain the lock (1) to the door.
- Remove the lock (1) from the door.
