Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side front door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the side front door outside handle. Refer to Door Handle Replacement - Outside .
  3. Remove the clip that retains the lock cylinder lever to the lock cylinder (1).
  4. Press the lock cylinder, from outside the vehicle, through the side front door outside handle (3).
  5. Remove the lock cylinder (1) from the side front door outside handle (3).

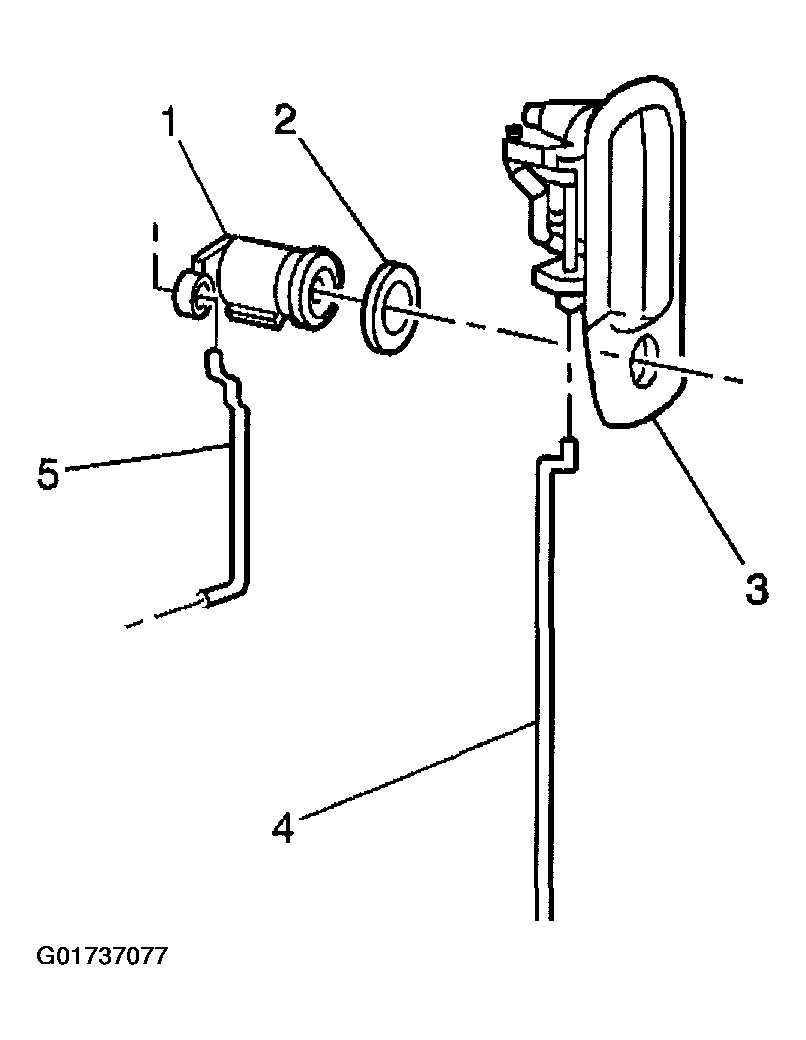

Fig 1: Removing Side Door Lock Cylinder
G01737077Courtesy of GENERAL MOTORS CORP.
