Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the rear door outside handle. Refer to Door Handle Replacement - Outside .
  3. Remove the clip that retains the lock cylinder lever to the lock cylinder (1).
  4. Press the lock cylinder, from outside the vehicle, through the rear door outside handle (3).
  5. Remove the lock cylinder (1) from the rear door outside handle (3).

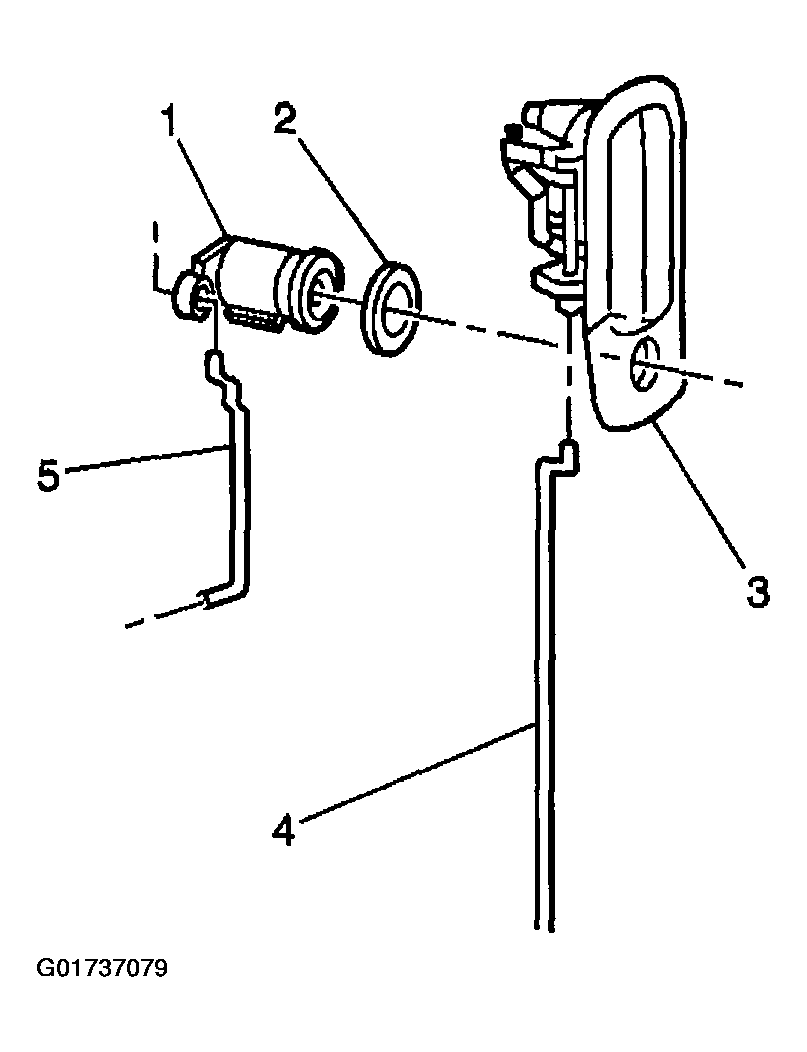

Fig 1: Removing Rear Door Lock Cylinder
G01737079Courtesy of GENERAL MOTORS CORP.
