Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the window completely.
  2. Remove the front door trim panel. Refer to Trim Panel Replacement - Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the outside door handle (3). Refer to Door Handle Replacement - Outside .
  5. Remove the clip that retains the lock cylinder lever to the lock cylinder (1).
  6. Press the lock cylinder retainer. Remove the lock cylinder (1) from the outside door handle (3).

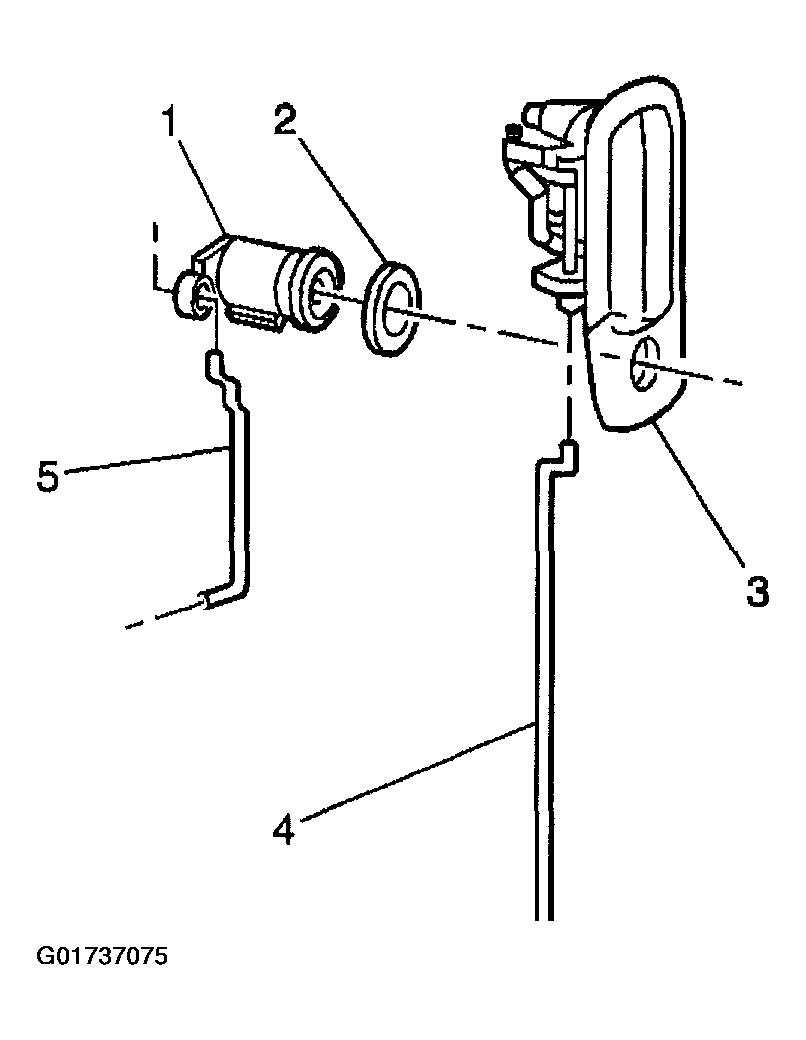

Fig 1: Removing Front Door Lock Cylinder
G01737075Courtesy of GENERAL MOTORS CORP.
