Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important: The power door lock actuator is attached to the door lock assembly.

Remove the door lock assembly. Refer to the appropriate procedure:
Remove the power door lock actuator retainers (2) from the door lock assembly.
Remove the power door lock actuator (1).

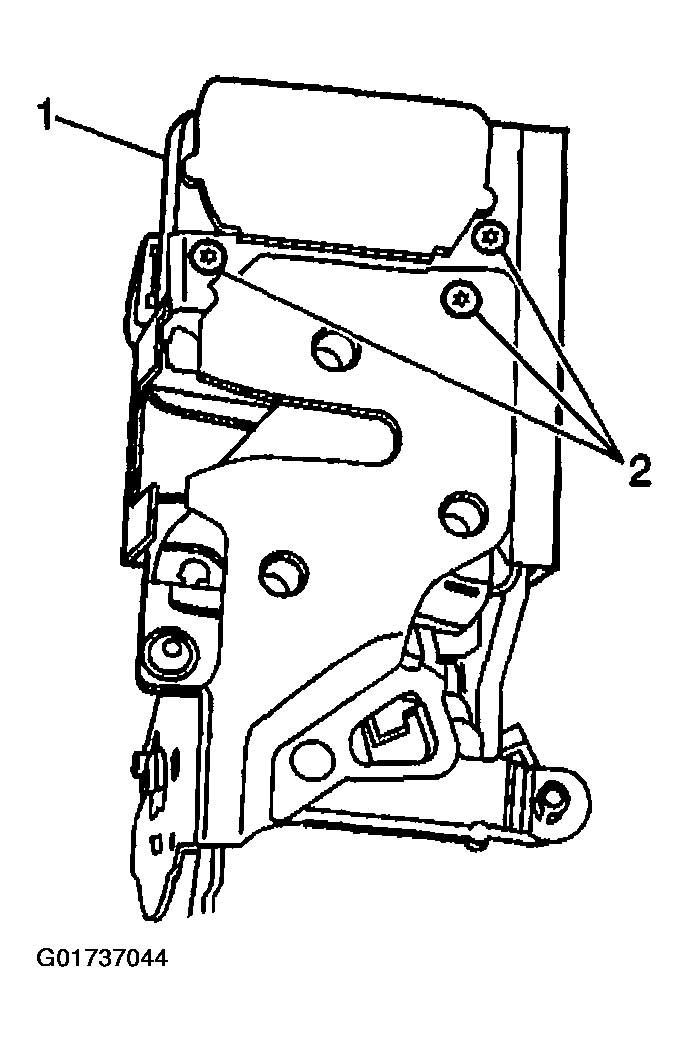

Fig 1: Removing Power Door Lock Actuator

Courtesy of GENERAL MOTORS CORP.
