Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Disconnect the side rear door lower latch lock rod (1) from the side rear door lower latch (2).
  3. Remove the bolts (4) that retain the side rear door lower latch (2) to the door.
  4. Remove the side rear door lower latch (2) from the door.

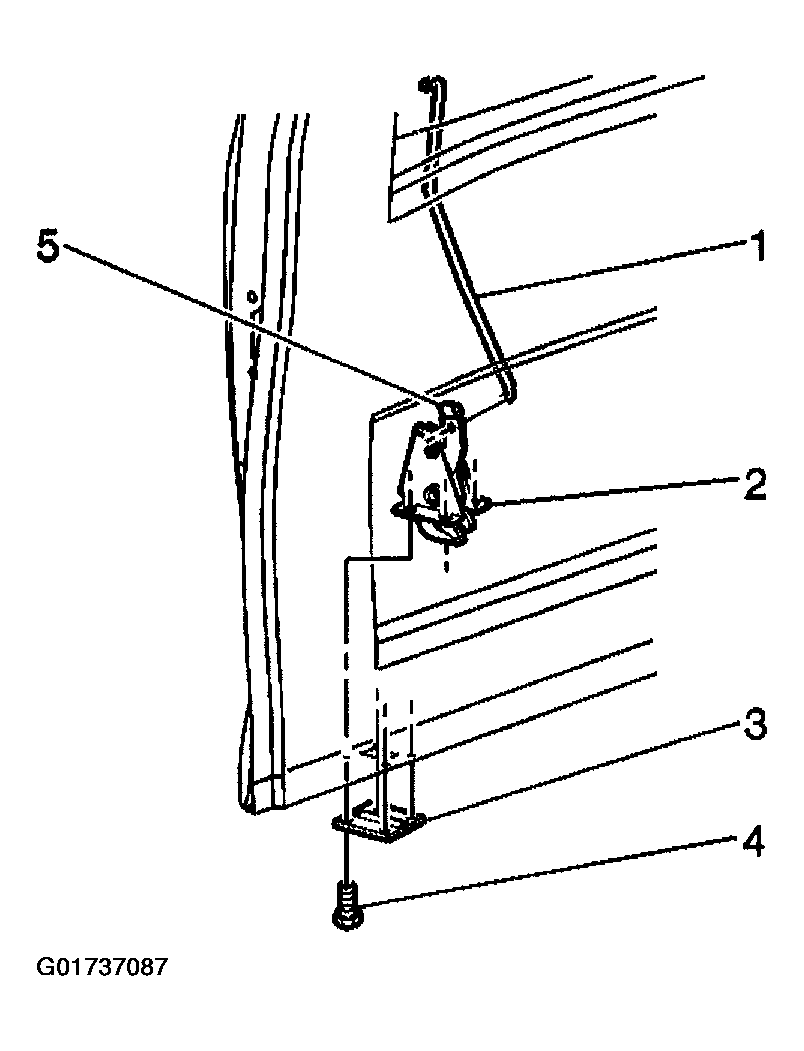

Fig 1: Removing Side Rear Door Lower Latch
G01737087Courtesy of GENERAL MOTORS CORP.
