Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the side rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Disconnect the lock nuts (2) that retain the side rear door latch handle (4) to the side rear door.
  3. Remove the nuts (2) that retain the side door latch handle (4) to the side rear door.
  4. Remove the side rear door latch handle (4) from the door.

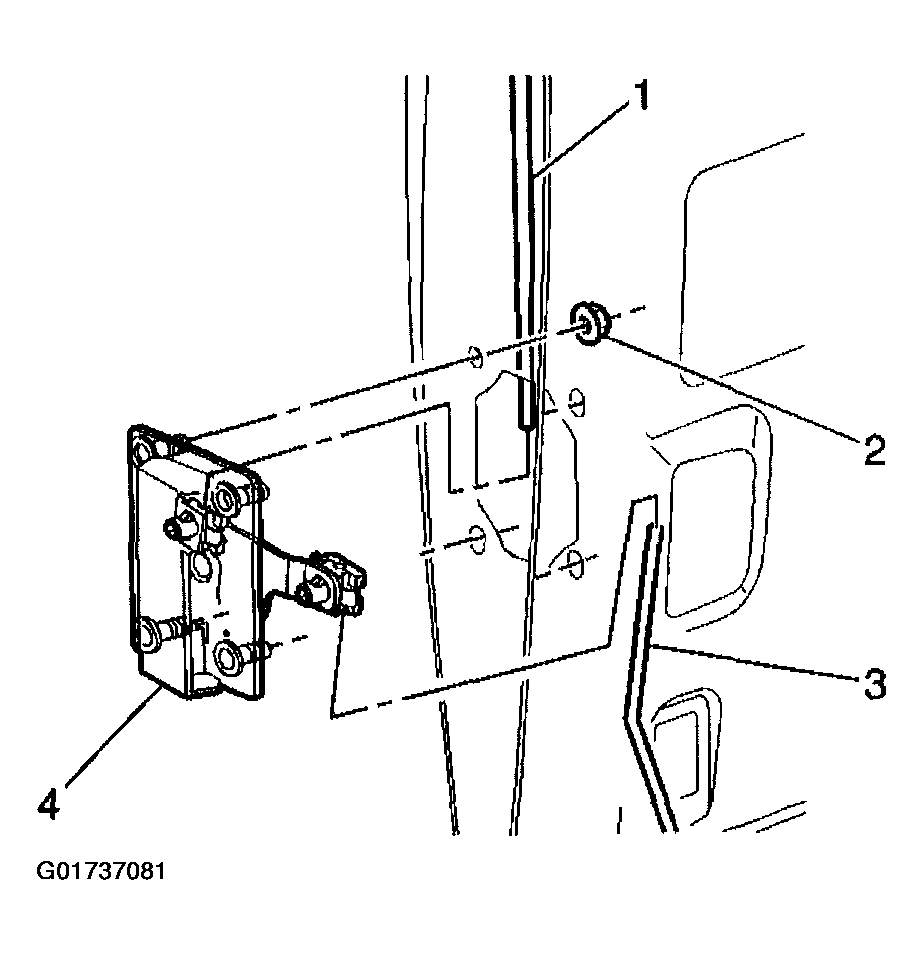

Fig 1: Removing Side Rear Door Latch Handle
G01737081Courtesy of GENERAL MOTORS CORP.
