Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the J 9886-01  , release the retaining clip on the sliding side door inside handle.
  2. Remove the sliding side door inside handle from the sliding side door control assembly.
  3. Remove the sliding side door inside handle from the vehicle.

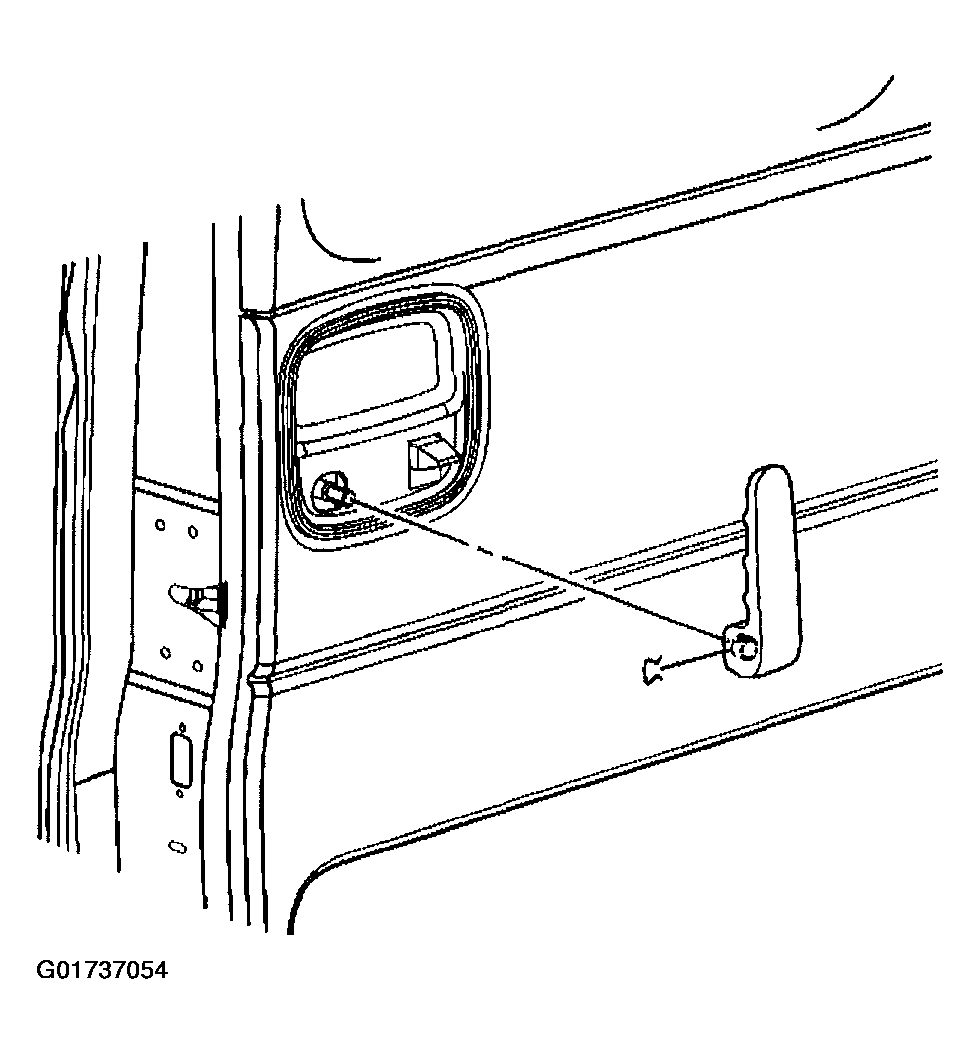

Fig 1: Removing Sliding Side Door Inside Handle
G01737054Courtesy of GENERAL MOTORS CORP.
