Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the retaining tab on the inside door handle bezel in order to release the inside door handle bezel from the front door trim plate.
  2. Remove the inside door handle bezel from the vehicle.

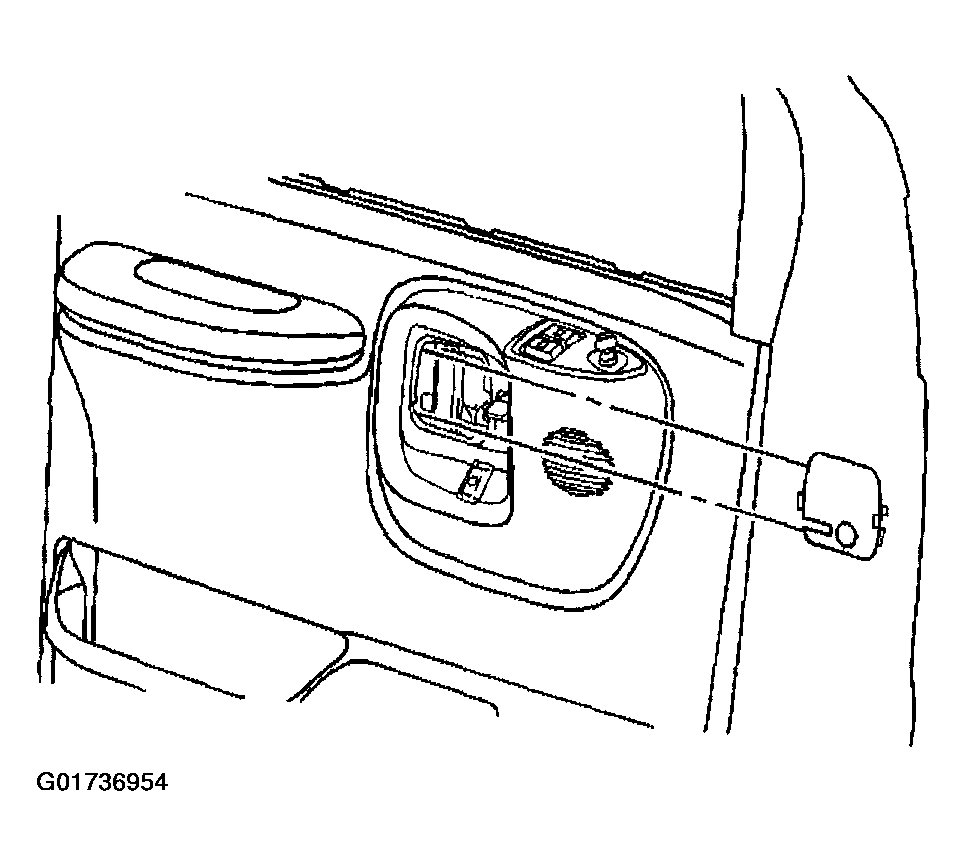

Fig 1: Removing Inside Door Handle Bezel
G01736954Courtesy of GENERAL MOTORS CORP.
