Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inside door handle bezel to the vehicle.
  2. Align the inside door handle bezel to the front door trim plate.
  3. Press the inside door handle bezel in order to engage the retaining tab.

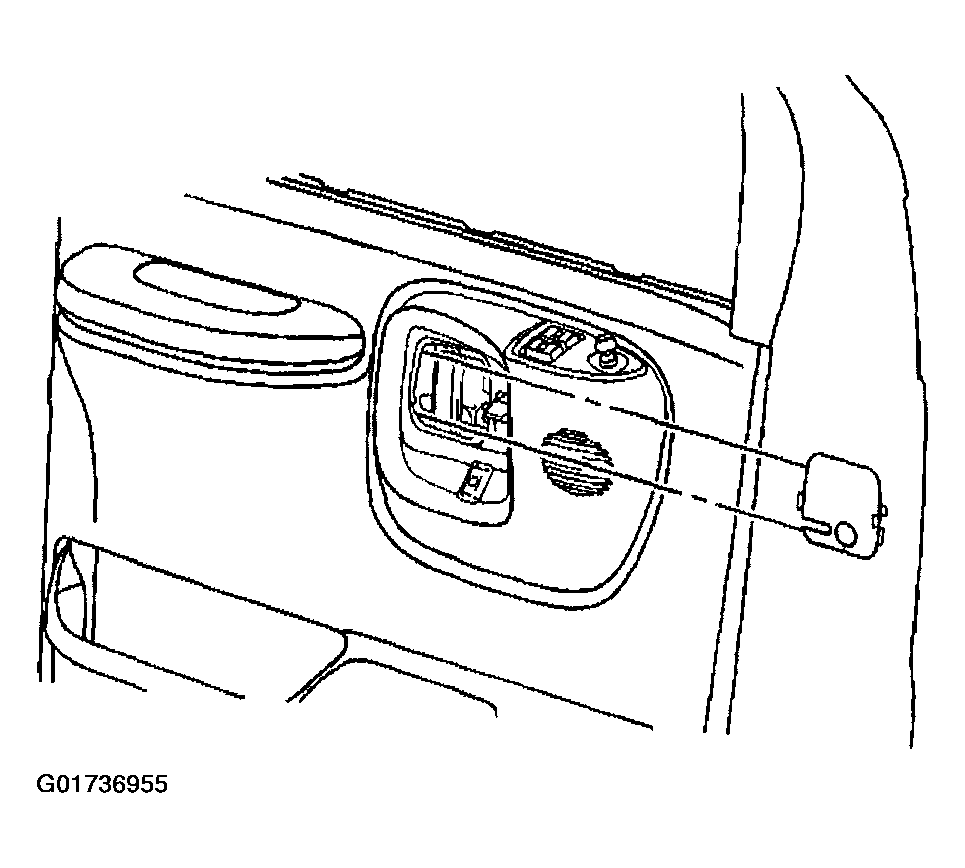

Fig 1: Installing Inside Door Handle Bezel
G01736955Courtesy of GENERAL MOTORS CORP.
