Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the front door rear garnish molding.

    Gently pull the molding in order to disengage the retaining clips.

  2. Remove the front door rear garnish molding from the vehicle.
  3. Inspect the front door rear garnish molding for broken or missing retaining clips. Replace any clips, if needed.

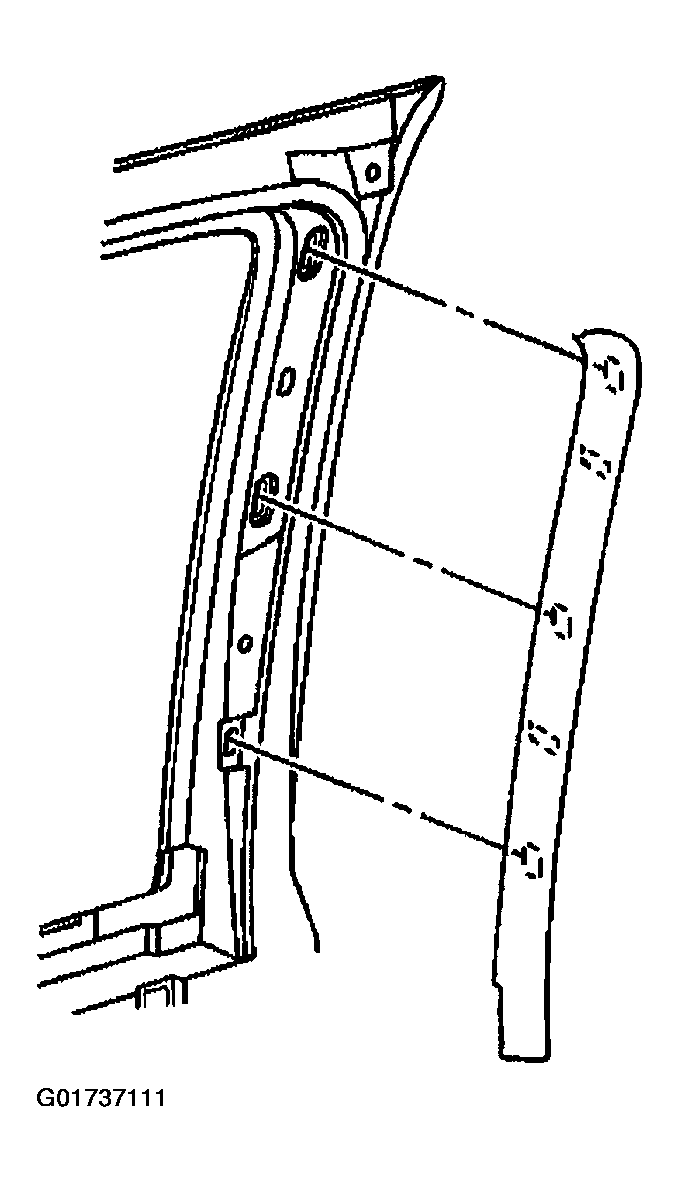

Fig 1: Removing Front Door Rear Garnish Molding
G01737111Courtesy of GENERAL MOTORS CORP.
