Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grasp the front door front garnish molding.

    Gently pull at the top of the molding in order to disengage the retaining clips.

  2. Lift the front door front garnish molding up to disengage the tab on the garnish molding from the slot on the door trim panel.
  3. Inspect the front door front garnish molding for broken or missing retaining clips. Replace any clips, if needed.

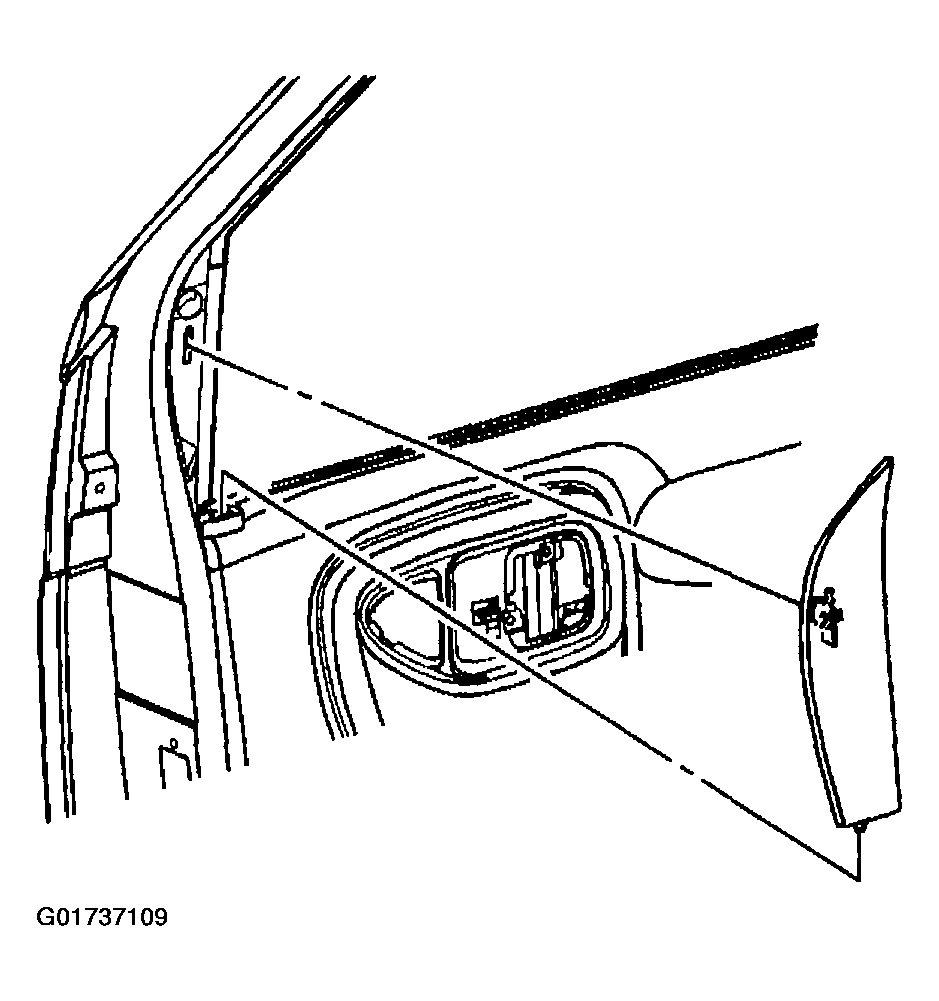

Fig 1: Removing Front Door Front Garnish Molding
G01737109Courtesy of GENERAL MOTORS CORP.
